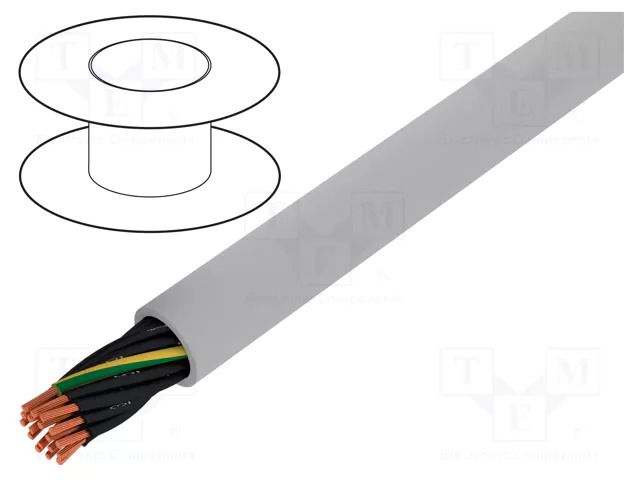

Wire; JZ-500; 18G0.75mm2; unshielded; 300V,500V; Cu; stranded; grey HELUKABEL
Product Code: JZ500/18X0.75
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Wire; JZ-500; 18G0.75mm2; unshielded; 300V,500V; Cu; stranded; grey HELUKABEL
Useful information
Specifications
Supplier product description
Wire; JZ-500; 18G0.75mm2; unshielded; 300V,500V; Cu; stranded; grey
Useful information
Supplier parameters
Brand
HELUKABEL
Supplier's product code
JZ500/18X0.75
Product ID
U-224610
Cable application
assembly line tools
Cable external diameter
12.2mm
Cable structure
18G0.75mm<sup>2</sup>
Core marking
black, numbered + ground wire
Core section
0.75mm<sup>2</sup>
Core structure
stranded
CPR standard
E<sub>ca</sub>
Earth core
yellow-green
Flexibility class
5
Insulation colour
grey
Kind of core
Cu
Kind of material
flame retardant
Kind of wire
JZ-500
Manufacturer
HELUKABEL
Number of cores
18
Operating temperature
-40...80°C
Rated voltage
500V
Resistance to
most of oils
Shield structure
unshielded
Type of wire
control cable
Wire insulation material
PVC
Product code
JZ500/18X0.75
