Product description

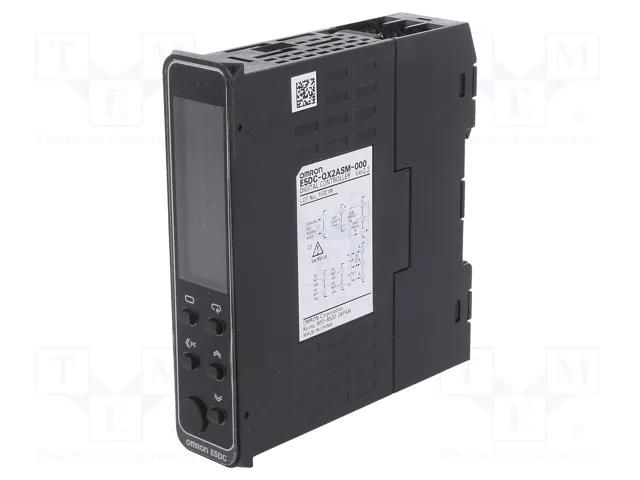

Module: regulator; temperature; SSR; OUT 2: SPST-NO; OUT 3: SPST-NO OMRON
Useful information
Specifications
Supplier product description
Module: regulator; temperature; SSR; OUT 2: SPST-NO; OUT 3: SPST-NO
Useful information
Supplier parameters
Product code
E5DC-QX2ASM-000
Brand
OMRON
Supplier's product code
E5DC-QX2ASM-000
Product ID
U-2247922
Additional functions
heating or cooling control
Body dimensions
22.5x96x85mm
Controlled parameter
temperature
Controlled parameter range
-1999...9999
Display 2 height
8mm
Display height 1
8.5mm
Input 1 properties
thermocouple
IP rating
IP66 (from the front)
Kind of display used
LCD
Kind of output 1
SSR
Kind of output 2
SPST-NO
Kind of output 3
SPST-NO
Kind of temperature sensor
Pt100
Leads
screw terminals
Manufacturer
OMRON
Manufacturer series
E5DC
Mounting
for DIN rail mounting
Operating temperature
-10...55°C
Output 2 electrical parameters
250V AC / 2A
Output 3 electrical parameters
250V AC / 2A
Regulation for output 1
ON-OFF
Supply voltage
100...240V AC
The programming method
keypad
Type of module
regulator
