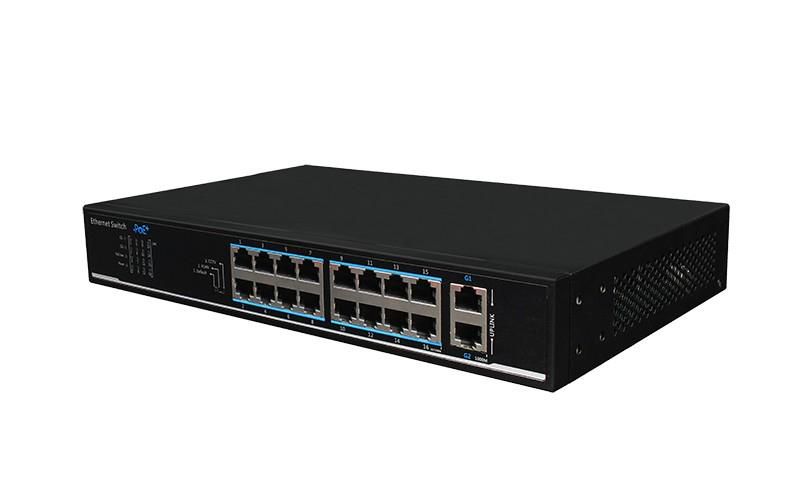

18 port 16 PoE port switch UTEPO UTP1218-PSB150

• Hardware Specifications
• Downlink Ports16*10/100Base-TX PoE+ RJ-45 (Auto-MDI/MDI-X)
• Uplink Ports2*10/100/1000Base-T RJ-45 (Auto-MDI/MDI-X)
• LED Indicators1* power supply indicator, 1* PoE max indicator16* downlink port indicators, 2*uplink port indicators
• CableCat5 or better
• Dimensions (W*D*H)294mm*180mm*44mm
• Net Weight1.6kg
• Input Voltage100~240V AC
• Power Consumption≤15W (Not include PoE)
• InstallationRack-mounted/wall-mounted
• MaterialMetal shell

• Switch Property
• Object Temperature RangeStore and Forward
• Switching Capacity7.2Gbps / non-blocking
• Packet Forwarding Rate5.4Mpps
• MAC Table8k, supported auto learning
• Packet Buffer4Mbit

• PoE
• PoE deviceEndpoint PSE (Power Sourcing Equipment)
• PoE StandardIEEE 802.3af/at
• PoE Pin Assignment1/2(+), 3/6(-)
• PoE Power Output52V DC
• PoE Budget30W max for each port, 135W max for whole switch

• Standard Conformance
• Standards Compliance IEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3ab Gigabit EthernetIEEE 802.3x Flow ControlIEEE 802.3af Power Over EthernetIEEE 802.3at Power Over Ethernet

• EMC
• EMC FCC 47 CFR Part 15 Class AEN55032 Class AIEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kVIEC61000-4-3, Level 2: 3V/mIEC61000-4-4, Level 2: 1kVIEC61000-4-5, line to earth: 6kVIEC61000-4-6, Level 2, (0.15MHz~80MHz)

• LVD
• LVD EN 62368-1:2014EN 62328-A11:2017

• Environments
• OperatingTemperature: -5℃~45℃Relative Humidity: 5%~95% (Non-condensation)
• Storage Temperature: -40℃~75℃Relative Humidity: 5%~95% (Non-condensation)

• Certifications
• CertificationsCE, FCC
