Product description

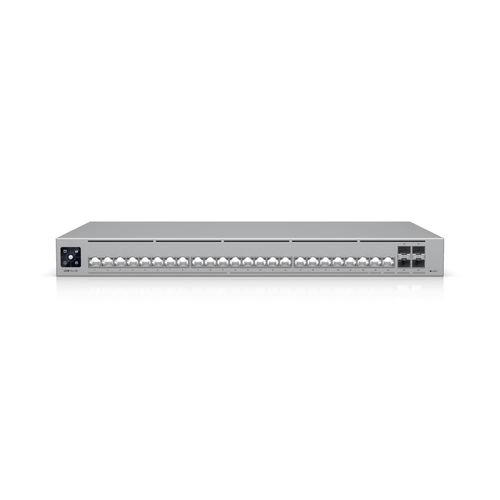

24-port switch Ubiquiti UniFi USW-Pro-HD-24-EU
Specifications
Supplier product description
- Type: Switch
- Brand: Ubiquiti
- Model: USW-Pro-HD-24-EU
- Ports: 22x 2.5GbE RJ45, 2x 10GbE RJ45, 4x 10G SFP+
- Maximum power: 60W
- Network layer: Layer 3
- Mounting: 1U rack
- Switching capacity: 230Gbps
- Throughput: 115Gbps
- Forwarding rate: 171Mpps
- VLAN support: Up to 1000
- MAC address table: 32000
- Buffer: 2MB
- Operating temperature: -5...40°C
- General
- Dimensions442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
- Port Layout2.5 GbE RJ45: 22, 10 GbE RJ45: 2, 10G SFP+: 4
- RedundancyDC Power Backup
- Layer 3Yes
- Form FactorRack mount (1U)
- Etherlighting™Yes
- Switching Capacity230 Gbps
- Total Non-Blocking Throughput115 Gbps
- Forwarding Rate171.12 Mpps
- Supported VLANs1,000
- MAC Address Table Size32,000
- L3 Table SizeARP Entries: 12,000, IPv4 Routes: 12,000
- Packet Buffer Size2 MB
- Layer 3 FeaturesDHCP Server (Local Networks): Yes, DHCP Relay: Yes, Inter-VLAN Routing (Local Networks): Yes, Static Routing (Local Networks): Yes
- Layer 2 FeaturesLACP Port Aggregation: Yes, STP & RSTP: Yes, QoS (DSCP): Yes, Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes, Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes, IGMP Snooping: Yes, 802.1X Control: Yes, MAC-Based ACLs & Device Isolation: Yes, DHCP Snooping & Guarding: Yes, Egress Rate Limit: Yes, Flow Control: Yes, Storm Control: Yes, Multicast & Broadcast Rate Limiting: Yes, MAC Address Blocking: Yes, IP-Based ACLs & Network Isolation: Yes, MAC-Based Port Restriction: Yes, Port Isolation: Yes, Port Mirroring: Yes, Jumbo Frames: Yes, LLDP-MED: Yes, Voice VLAN: Yes, Loop Protection: Yes
- Max. Power Consumption60W
- Power Method(1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
- Power Input MethodAC input
- Power SupplyAC/DC, internal, 60W
- Supported Voltage Range100—240V AC
- ManagementEthernet: AR
- Heat Dissipation (Excluding PoE Output)102.36 BTU/hr
- WeightWithout mounting brackets: 4.2 kg (9.2 lb), With mounting brackets: 4.3 kg (9.4 lb)
- Enclosure MaterialSGCC steel
- Supported Rack Depth400~1200 mm (15.7-47.2")
- LCM Display1.3" touchscreen
- Ambient Operating Temperature-5 to 40° C (23 to 104° F)
- Ambient Operating Humidity10 to 90% noncondensing
- CertificationsCE, FCC, IC
- Etherlighting™Ethernet: Yes, SFP+: Yes
