4 port switch Wi-Tek WI-PCES206-O

Product Code: SWITCHWIPCES206O

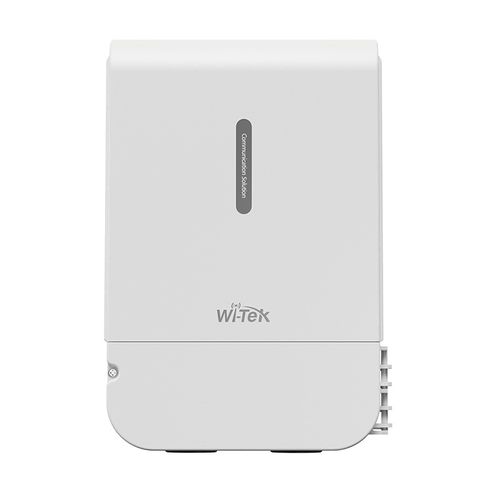

The photo is for illustration only. Please refer to the description for exact product specifications.
More similar products

Price range

AmountPrice with tax (pcs)
1+
€54.45€54.45
wholesale

Min. qty: 1

Multiplier: 1

Total:

€54.45
2025-08-02 Estimated delivery

*Total delivery cost will be calculated in the checkout.

Warehouse in Europe

Warehouse in Europe

90% positive feedback

94%+ positive feedback

30 day money back guarantee

30 day money back guarantee

Product description

4 port switch Wi-Tek WI-PCES206-O

Specifications

SKU
U-4589776
Product code
SWITCHWIPCES206O

Supplier product description

  • Type: Switch
  • Model: WI-PCES206-O
  • Brand: Wi-Tek
  • Ports: 4 PoE (100 Mbps), 2 Uplink (100 Mbps)
  • PoE power: 60 W
  • Throughput: 1.2 Gbps
  • Packet forwarding rate: 0.89 Mpps
  • MAC address capacity: 4K
  • Long range mode: >250 m (10 Mbps)
  • Buffer: 4 Mbit
  • Operating temperature: –30Β°C to +60Β°C

  • General
  • ModelWI-PCES206-O
  • Hardware VersionV1
  • PoE Ports4 x 10/100Mbps RJ45 PoE Ports (Ports 1–4)
  • PoE StandardPort 1–2: Hi-PoE 45W, Port 3–4: 802.3af/at 30W
  • PoE Pin Assignment1/2(+), 3/6(-)
  • Uplink Ports2 x 10/100Mbps Ethernet Ports
  • PoE Power Budget60W
  • Standards and ProtocolsIEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
  • Forwarding ModeStore and Forward
  • Switching Capacity1.2Gbps
  • Packet Forwarding Rate0.89Mpps
  • MAC Address Table8k
  • Packet Buffer Memory4Mbit
  • Jumbo Frame9216 Byte
  • Input Power100~240V AC 50/60Hz
  • Power ConsumptionIdle: 2.7W, Full Load: 62.7W
  • LED IndicatorsPWR(Orange): On=Normal, Off=Power off/failure; PoE(Orange): On=Enabled, Off=Disabled; Link(Orange): On=Connected, Off=Disconnected, Blinking=Data Transmission
  • DIP Switch1. Extend (PoE up to 250m @10Mbps), 2. VLAN (PoE ports to Uplink only), 3. PD Alive (PoE watchdog for auto reboot)
  • Reset ButtonHold >5 sec. to restore factory defaults
  • Fan QuantityFanless
  • Dimensions314 Γ— 210 Γ— 89 mm
  • Package Dimensions405 Γ— 253 Γ— 97 mm
  • WeightNet: 1.06kg, Package: 1.77kg
  • InstallationWall-mounted, Pole-mounted
  • Surge ImmunityIEC 61000-4-5: Common mode 4kV, Differential mode 2kV
  • ESD ProtectionIEC 61000-4-2: Contact discharge 6kV, Air discharge 8kV
  • CertificationCE, FCC, RoHS, UKCA, RCM
  • Operating Environment-30℃ to 60℃ (-22℉ to 140℉); 10–90% RH non-condensing
  • Storage Environment-40℃ to 70℃ (-40℉ to 158℉); 5–90% RH non-condensing
  • Software FeaturesPort Statistics, Cable Diagnostics, Port Mirroring, Port Isolation, Jumbo Frame, MAC Search/List, Port Reboot, Storm Control, Bandwidth Control, VLAN (1–4094), PD Alive, Extend PoE
  • Cloud ManagementWi-Tek Cloud & APP management, Remote Access, Intelligent Network Monitoring, Automatic Device Discovery
  • Package ContentsSwitch x1, Power Cord x1, Rubber Plug x2, Wall Hanging Sticker x1, Metal Tie x2, Quick Installation Guide x1, Optional: M36 Waterproof Gland x2

Supplier parameters

Product code
SWITCHWIPCES206O
Category
Swit
Supplier's product code
SWITCHWIPCES206O
Product ID
U-4589776
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
