Product description

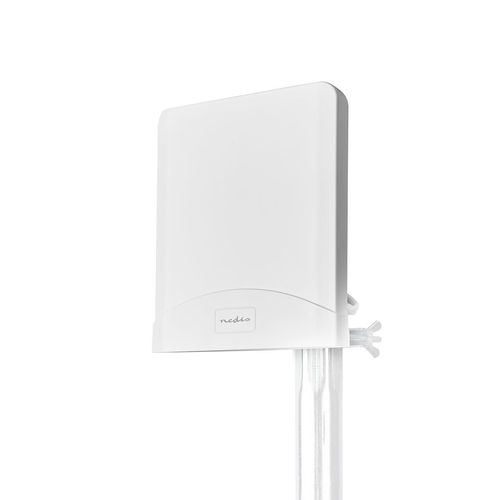

5G / 4G / 3G Antenna | 5G | Indoor & Outdoor | 698-5000 MHz | Gain: 6 dB | 2.50 m | White
Specifications
SKU
U-2581897
Barcodes
5412810327935
Product code
ANOR5G20WT
Supplier product description
5G / 4G / 3G / GSM antenna to enhance data communication and increase the data transfer speed of the 5G/4G/3G and GSM signal, using a quadruple frequency band. The antenna is supplied with two 2.5-m LMR200 low-loss cables to enable a high-quality reception of the 5G signal with only 1 aerial. It can be mounted indoors or outdoors, whichever gives the best results.
Connect the Antenna to your 4G or 5G device's Antenna Port. The device can be a 4G LTE or 5G CPE (Customer Premises Equipment), SIM card router, or cell phone Signal Boosters.
Ensure a secure and snug connection to minimize signal loss.
Adjust the antenna direction for maximum signal strength. Use a compass or refer to your
device's signal strength indicator to find the optimal direction. Gradually adjust the antenna
angle and direction, checking the signal strength periodically. Ensure a secure and snug
connection to minimize signal loss.
Supplier parameters
Product code
ANOR5G20WT
Cable length
2.50 m
Colour
White
Connector type
SMA Male
Diameter of mounting pole
30-53 mm
Front-back ratio
20 dB
Gain
6 dB
Horizontal beam width
360 Ā°
Impedance external speaker
50 Ohm
Indoor / outdoor
Indoor & Outdoor
Lightning protection
Yes
Material
Aluminium;PVC
Number of elements
1
Number of products in package
1 pcs
Polarisation
Linear
Rated wind velocity
120 km/h
Reception frequency range
698-5000 MHz
Signal type
5G
SmartLife
No
Vertical beam width
120 Ā°
Voltage standing wave ratio (VSWR)
Less than 3.0
Supplier's product code
ANOR5G20WT
Product ID
U-2581897
