Product description

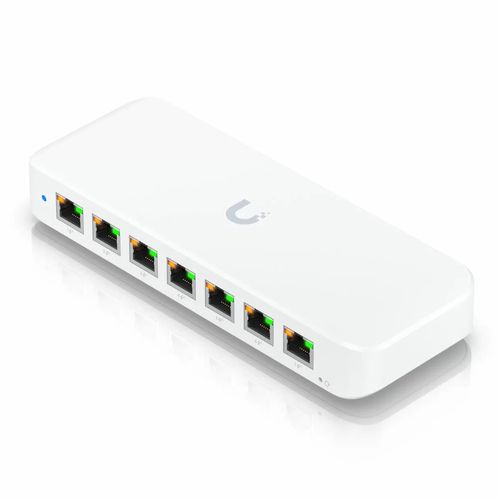

8-port switch Ubiquiti Unifi USW-Ultra-60W-EU
Specifications
Supplier product description
- Type: Switch
- Model: Ubiquiti Unifi USW-Ultra-60W-EU
- Number of ports: 8
- Type of ports: Gigabit PoE+
- PoE+ IN: 1 port
- PoE++: Ports 2-7
- Bandwidth: 16 Gbps
- Transmission speed: 11.94 Mpps
- Standards: IEEE 802.3at/af
- Level: L2
- Maximum power: 52W
- General
- Dimensions203 x 76 x 33 mm (8 x 3 x 1.3")
- WeightDevice: 320 g (11.3 oz), Wall mount: 45 g (1.6 oz), 60W adapter: 330 g (11.6 oz)
- Enclosure materialPolycarbonate
- Management interfaceEthernet In-Band
- Networking interface(8) GbE RJ45 ports
- PoE interface(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
- Total non-blocking throughput8 Gbps
- Switching capacity16 Gbps
- Forwarding rate11.904 Mpps
- Power method(1) 54V, 1.1A power adapter (Included), PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
- Power supply54V, external, 1.1A/60W
- Supported voltage range44—57V DC
- Max. power consumption9W with PoE input (Excluding PoE output), 8W with AC adapter input (Excluding PoE output)
- Total available PoEPoE++ input: 42W, PoE+ input: 16W, 60W PoE adapter input: 42W, 60W AC adapter input: 52W, 210W AC adapter input: 202W* (*At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F))
- Max. PoE+ wattage per port by PSE30W
- ButtonFactory reset
- Ambient operating temperaturePoE++ input: -30 to 60° C (-22 to 140° F), 60W AC adapter input: -20 to 45° C (-4 to 113° F), 210W AC adapter input: -20 to 60° C (-4 to 140° F)
- Ambient operating humidity10 to 90% noncondensing
- CertificationsCE, FCC, IC
- Switching FeaturesLayer 2 features Port isolation, Storm control, Port mirroring, Multicast/broadcast rate limiting, Flow control, Jumbo frames, Egress rate limit
- Layer 3 features–
- LEDsSystem Status, Ethernet PoE, Link/activity
