Product description

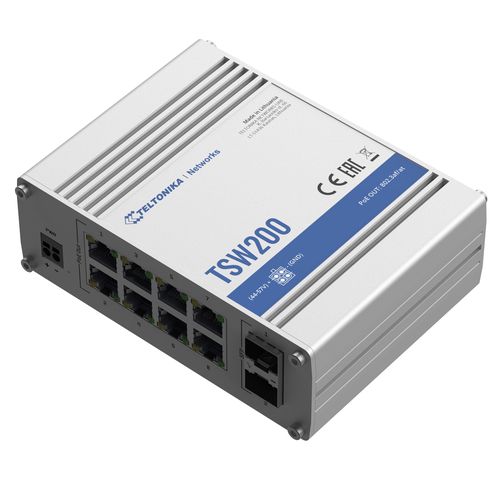

8 ports, 8 POE ports Teltonika TSW200 Industrial Unmanaged Switch
Specifications
Supplier product description
- 8 x Gigabit Ethernet with speeds up to 1000 Mbps
- 8x PoE ports with 802.3af and 802.3at support
- 2 x SFP ports for long-range Fiber-optic communication
- Total power budget at PSE up to 240 W
- Configurable without power supply
- Ethernet
- LAN8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- Fiber2 x SFP ports
- POE
- PoE portsPort 1 - 8
- PoE standards802.3af and 802.3at
- PoE Max Power per Port (at PSE)30 W
- Total PoE Power Budget (at PSE)240 W
- Performace Specifications
- Bandwidth (Non-blocking)20 Gbps
- Packet buffer128 KB
- MAC address table size2K entries
- Jumbo frame support9216 bytes
- Power
- Connector2 pin industrial DC power socket
- Input voltage range7-57 VDC
- Input voltage range for PoE44-57 VDC
- Power consumption (idle/max no PoE/max)1,81 W/5.5 W/245.5 W
- Interfaces (PORTS, LEDS)
- Ethernet8 x RJ45 ports, 10/100/1000 Mbps
- Fiber2 x SFP ports
- Status LED’s1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
- Power1 x 2 pin industrial DC power socket
- Ground1 x Grounding screw
- Physical Specification
- Casing materialFull aluminum housing
- Dimensions (W x H x D)132 x 44.2 x 95.1 mm
- Weight456 g
- MountingDIN rail or wall mounting (additional kit needed), flat surface placement
- Operating Environment
- Operating temperature-40 °C to +75 °C
- Operating humidity10 % to 90 % non condensing
- Ingress Protection RatingIP30
Supplier parameters
Product code
SWITCHTELTSW200
Category
Swit
Brand
Teltonika
Supplier's product code
SWITCHTELTSW200
Product ID
U-2616845
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
