Product description

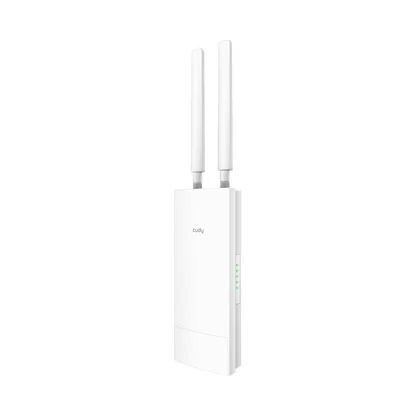

Access Point CUDY AP1300 OUTDOOR
Specifications
SKU
U-4601630
Product code
CUDYAP1300OUT
Supplier product description
- Type: Wireless LAN access point (outdoor)
- Model: CUDY AP1300 Outdoor
- WiFi standard: WiFi 5 (802.11ac)
- Speed: 867 Mbps @ 5 GHz + 300 Mbps @ 2.4 GHz
- Memory: 128 MB DDR3
- Processor: 880 MHz dual-core
- MIMO: 2x2 MU-MIMO
- Antennas: 2 detachable, RP-SMA, 4.37 dBi (5 GHz), 4.46 dBi (2.4 GHz)
- Bandwidth: up to 80 MHz
- Mesh support: Cudy Mesh (802.11k/v)
- Operating temperature: -20°C ~ +60°C (extended to -40°C ~ +65°C)
- Power supply: 802.3af/at PoE or 24–57V passive PoE
- Mounting: Wall or pole mount
- Protection: IP65, 4 kV lightning/surge protection, 8 kV ESD
- Recommended number of users: up to 50, maximum 128
- General
- Model VersionAP1300 Outdoor 1.0
- CPU ChipsetMT7621DAT
- CPU Details880 MHz Dual-Core CPU
- Flash/ROM16 MB (128 Mbit) NOR
- DDR/RAM128 MB (1 Gbit) DDR3
- 5 GHz Wi-Fi Speed867 Mbps
- 2.4 GHz Wi-Fi Speed300 Mbps
- 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
- 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
- Wi-Fi Antennas2× Detachable
- 5 GHz Antenna Gain Max4.37 dBi
- 2.4 GHz Antenna Gain Max4.46 dBi
- FEM or PA/LNA5 GHz: 2× Internal, 2.4 GHz: 2× Internal
- Detachable Wi-Fi Antenna ConnectorRP-SMA Female
- BeamformingTrue
- Range PerformanceMax: 170 m (558 ft), Park: 150 m (492 ft), Street: 50 m (164 ft), Woods: 30 m (98 ft)
- Gigabit RJ45 Ports1
- Ethernet NotesAccepts PoE powering
- LED5 GHz Wi-Fi, 2.4 GHz Wi-Fi, LAN, Internet, System
- Physical ButtonsReset Button
- Power InputPoE via Ethernet Port
- Power Methods802.3at/af PoE, Passive PoE (24 ~ 57V)
- Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC, Output: 48V Passive PoE
- Max Power Consumption11 W
- Idle Power Consumption7.5 W
- Hardware WatchdogYes
- EMS ProtectionESD: Contact: 4kV; Air: 8kV, Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV (IEC/EN 61000-4-5 Level 4)
- Operating Temperature-20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
- Extended Operating Temperature (Industrial SIM)-40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
- Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Operating Humidity10% ~ 90% non-condensing
- Storage Humidity5% ~ 90% non-condensing
- Ingress Protection RatingIP65 when device is installed vertically
- CertificationsFCC, CE
- Installation OptionsWall-mount, Pole-mount
- Device Body Dimensions240×100×53.7 mm (9.45×3.94×2.11 inches)
- Antenna Dimensions197.5×21.6×15.5 mm (7.78×0.85×0.61 inches)
- Package ContentAP1300 Outdoor, Detachable Antennas, PoE Adapter, Power Cord, Mounting Kit, Ethernet Cable, Installation Guide
