Product description

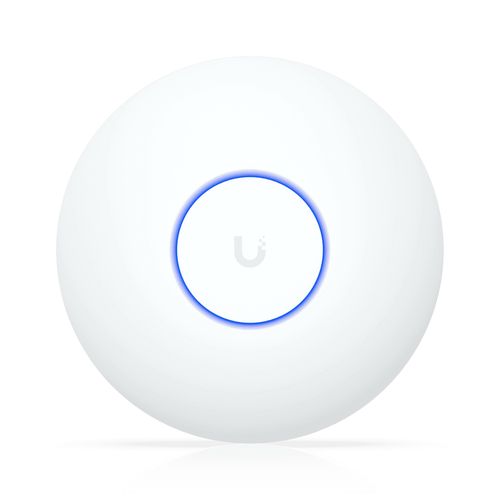

Access point Ubiquiti UniFi U7-Lite
Specifications
Supplier product description
- Type: Access Point
- Model: Ubiquiti U7-Lite
- WiFi Standard: WiFi 7
- Streams: 4
- Coverage Area: 115 m²
- Client Support: 200+
- Uplink Speed: 2.5 GbE
- Power Supply: PoE
- MIMO: 2x2
- Speed 5GHz: 4.3 Gbps
- Speed 2.4GHz: 688 Mbps
- Power Consumption: 13 W
- Operating Temperature: -30...40°C
- General
- DimensionsØ171.5 × 33 mm (Ø6.8 × 1.3")
- WiFi StandardWiFi 7
- Spatial Streams4
- Coverage Area115 m² (1,250 ft²)
- Max. Client Count200+
- Uplink2.5 GbE
- MountingCeiling, Wall (Lite Mount Included)
- Power MethodPoE
- MIMO 5 GHz2 × 2 (DL/UL MU-MIMO)
- MIMO 2.4 GHz2 × 2 (DL/UL MU-MIMO)
- Max. Data Rate 5 GHz4.3 Gbps (BW240)
- Max. Data Rate 2.4 GHz688 Mbps (BW40)
- Antenna Gain 5 GHz5 dBi
- Antenna Gain 2.4 GHz4 dBi
- Max. TX Power 5 GHz24 dBm
- Max. TX Power 2.4 GHz23 dBm
- Max. BSSIDs8 per Radio
- Supported Data Rates 802.11be (WiFi 7)7.3 Mbps–4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240)
- Supported Data Rates 802.11ax (WiFi 6)7.3 Mbps–2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
- Supported Data Rates 802.11ac (WiFi 5)6.5 Mbps–1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
- Supported Data Rates 802.11n6.5 Mbps–300 Mbps (MCS0–MCS15, HT 20/40)
- Wireless MeshingYes
- Band SteeringYes
- 802.11v BSS Transition ManagementYes
- 802.11r Fast RoamingYes
- 802.11k Radio Resource Management (RRM)Yes
- Advanced Radio ManagementYes
- Passpoint (Hotspot 2.0)Yes
- Captive Hotspot Portal Custom BrandingYes
- Voucher AuthenticationYes
- Payment-Based AuthenticationYes
- External Portal Server SupportYes
- Password AuthenticationYes
- Guest Network IsolationYes
- Private Pre-Shared Key (PPSK)Yes
- WiFi Speed LimitingYes
- Client Device IsolationYes
- WiFi SchedulesYes
- RADIUS over TLS (RadSec)Yes
- Dynamic RADIUS-assigned VLANYes
- Max. Power Consumption13W
- Supported Voltage Range42.5–57V DC
- Networking Interface(1) 2.5 GbE RJ45 port
- Weight313 g (11 oz)
- ManagementEthernet
- Enclosure MaterialUV-stabilized polycarbonate
- Mount MaterialUV-stabilized polycarbonate, galvanized steel (SGCC)
- LEDsSystem (White/Blue)
- Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
- CertificationsCE, FCC, IC
- NDAA CompliantYes
- Ambient Operating Temperature-30 to 40° C (-22 to 104° F)
- Ambient Operating Humidity5 to 95% noncondensing
Supplier parameters
Product code
UBIQUITIU7LITE
Category
Acce
Brand
Ubiquiti
Supplier's product code
UBIQUITIU7LITE
Product ID
U-4615624
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
