Product description

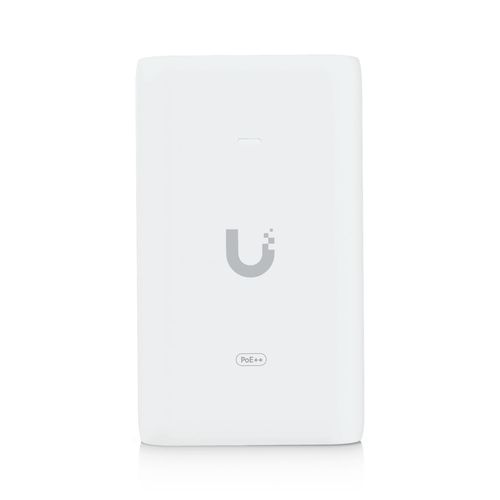

Adapter UBIQUITI UACC-PoE++-10G
Specifications
Supplier product description
- Type: Adapter
- Model: UACC-PoE++-10G
- Brand: UBIQUITI
- Maximum power: Up to 60W PoE++
- Output voltage: 54V DC, 1.12A
- LAN speed: Up to 10GbE
- Switching frequency: 65 kHz
- Efficiency: >88%
- Operating temperature: 0...40°C
- General
- Dimensions106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
- Weight210 g (7.4 oz)
- Output voltage54V DC @ 1.12A
- LAN activity indicatorNo
- Gigabit LAN portYes, up to 10 GbE
- Remote reset capabilityNo
- Reset buttonNo
- Rated voltage100—240V AC @ 50/60Hz
- Input current1.5A max.
- Inrush current<150A peak @ 230V AC
- Efficiency>88%
- Output ripple1% max.
- Switching frequency65 kHz
- Line regulation≤ 2%
- Load regulation≤ 5%
- 2-pair poweringNo
- 4-pair poweringPins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
- Data In / PoERJ45 shielded socket
- Surge protectionDifference and common mode
- Clamping protection11V data, 60V power
- Max. surge discharge1500A (8/20 μs) power
- Peak pulse current36A (10/1000 μs) data
- Shunt capacitance<5 pF data
- Response time<1 ns
- Max. PoE+ wattage per port by PSE60W
- Ambient operating temperature0 to 40° C (32 to 104° F)
- Storage temperature-30 to 70°C (-22 to 158° F)
- Ambient operating humidity10 to 95% noncondensing
- CertificationsCE, FCC, IC, UL, UKCA, KC, CCC, RoHS
Supplier parameters
Category
Accesories
Product code
UBIQUACCPOE10G
Brand
Ubiquiti
Supplier's product code
UBIQUACCPOE10G
Product ID
U-4460869
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
