Product description

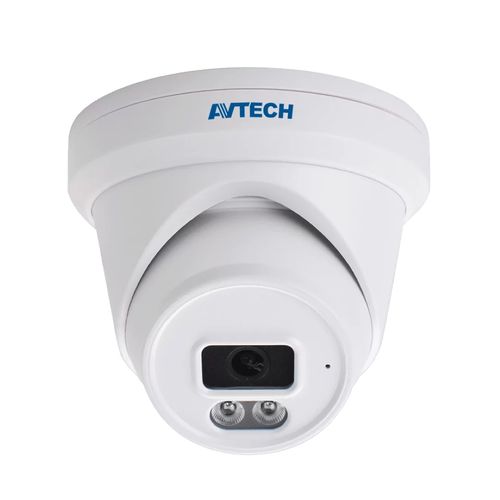

AVTECH dome DGM8209SVAT (8MP)
Specifications
SKU
U-4601651
Product code
KIPDGM8209SVATPF2.8
Supplier product description
- Type: Dome IP Camera
- Model: DGM8209SVAT
- Brand: AVTECH
- Image Sensor: 8 MP
- Lens: 2.8 mm (~112°)
- Video Encoding: H.265
- IR Illumination: Up to 30 m
- Wide Dynamic Range: 120 dB WDR
- Audio Recording: Built-in Microphone
- I/O Interface: Alarm Input/Output
- Protection Class: IP67
- Video Storage: Micro SD card up to 256 GB
- Power Supply: PoE
- Serial Number: AVA145
- General
- Image Sensor1/2.8” SONY CMOS
- Max. Resolution3840 x 2160
- Lensf2.8 mm / F1.6
- Viewing Angle112˚ (Diagonal)
- Min Illumination0.001 Lux (IR LED off), 0 Lux (IR LED on)
- Shutter SpeedAUTO, 1/25s ~ 1/100000s
- IR LED2 units
- IR Effective DistanceUp to 30 meters
- Day / NightYES
- WDR ModeYES (120dB)
- RTC (real-time clock)YES
- MicroSD Card SlotYES (up to 256GB)
- CompressionH265 / H.264
- Video ResolutionMain Stream: 8MP (3840x2160) / 6MP (3072x2048) / 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P; Sub Stream: 2MP (1080P) / 720P / 720x480 / VGA / 640x360 / 480x360 / CIF
- Frame Rate4K (8MP) @ 30FPS
- Video ProfileHigh profile / Main profile / Base profile
- Multiple Video Streaming2 streams
- Bitrate Control512Kbps - 12Mbps, VBR/CBR
- Image EnhancementWDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC
- Day / Night SwitchAuto / Color / (B/W) / Timing
- Forced Anti-flickerYES
- DefogYES
- White BalanceAuto / Manual
- Image OrientationRotate / Mirror
- Privacy MaskYES
- Text OverlayYES
- OSD TitleLocation / font size / text configurable; supports English & Chinese character input, BMP image upload
- Microphone built-inYES
- Audio EncodingG.711-u / G.711-a
- Audio AdjustmentYES
- Detection ModeMotion / Human / Vehicle Detection
- Detection ScheduleYES
- Motion Detection Area1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18
- On-Board StorageBuilt-in memory card slot, supports microSD / SDHC / SDXC up to 256GB
- OverwriteYES
- Maximum Recoding Time / per File1, 2, 3, 5, 10, 20 & 30 minutes configurable
- Recording ScheduleYES
- LAN PortRJ45 connector x 1 / 4KV lightning-proof
- LAN Speed100Mbps Based-T Ethernet
- Supported ProtocolsHTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS / RTMP
- ONVIF CompatibleOnvif 17.06 compatible
- Number of Online Users6
- Remote AccessInternet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome
- Web Interface LanguageEnglish, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean
- Operating Temperature-30℃ ~ 60℃
- Operating Humidity10%-90%RH
- POEIEEE 802.3af
- Power Source (±10%)PoE / DC12V
- Power Consumption (±10%)< 8 W
- Net Weight (g)491
- CasingIP66
- Optional Bracket / Junction BoxAVA145-WHKT / AVA23BK-WBKT
- Minimum Web Browsing RequirementsIntel Core i3 or higher (or equivalent AMD), 2GB RAM, AGP graphics card with Direct Draw and 32MB RAM, Windows 10/8/7 with DirectX 9.0 or later, IE6+, Edge & Chrome supported
Supplier parameters
Product code
KIPDGM8209SVATPF2.8
Category
Dome Camera
Supplier's product code
KIPDGM8209SVATPF2.8
Product ID
U-4601651
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
