Product description

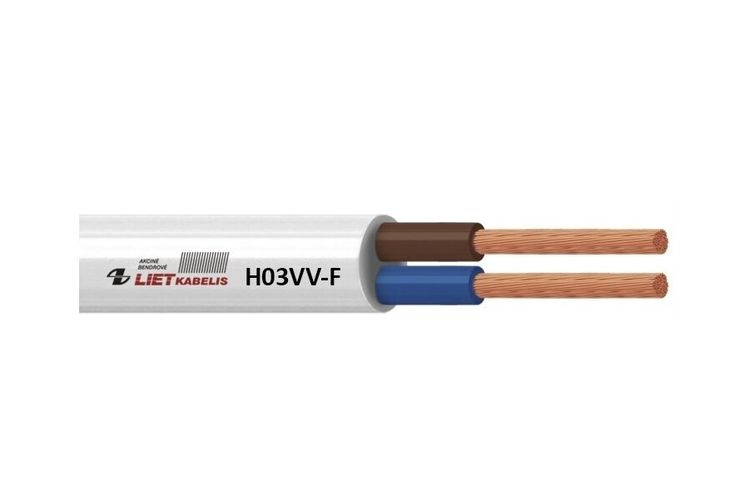

The cable is designed for low power domestic appliance installation in domestic premises. The cable is designed for use in household, including wet premises.
Highly soft conductor is stranded out of fine annealed copper wires.
Insulated cores are stranded together and PVC-sheathed. Highly flexible cable is easy to use.
Additional information
The cable fully complies with the EU Directive 2011/65/ES on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
The cable fully conforms to the requirements of the EU Directive 2006/95/EB for Low Voltage.
The cable conformed with Regulation (EU) No 305/2011 of the European Parliament and of the Council.
Reaction to Fire Class Eca. DoP (Declaration of Performance LK-DoP 07/001/EN)
| Technical date | |
|---|---|
| Conductor resistance at +20°C | Accordance with LST EN 60228+AC |
| Conductor working temeprature, max. | +70°C (under normal conditions) +160°C (in the event of short circuit) |
| Thermal shock | 1 h at +150°C |
| Rated voltage U/U0 | 300/300 V |
| High voltage test, kV | 2 kV |
| Minimum bending radius | > 5 times the cable diameter |
| Operating temperatures | Mounting -5°C - +40°C Operating -30°C - +70°C |
| Flame propagation | Flame test in accordance with LST EN 60332- 1 -2 |
