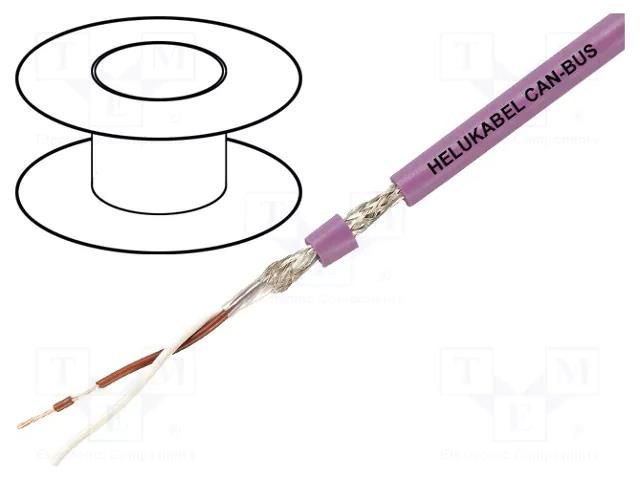

Wire; 4x1x0.22mm2; CAN bus; stranded; Cu; PVC; violet; 30V; none HELUKABEL
Product Code: CANBUS-4X1X0.22-IN
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Wire; 4x1x0.22mm2; CAN bus; stranded; Cu; PVC; violet; 30V; none HELUKABEL
Useful information
Specifications
Supplier product description
Wire; 4x1x0.22mm2; CAN bus; stranded; Cu; PVC; violet; 30V; none
Useful information
Supplier parameters
Product code
CANBUS-4X1X0.22-IN
Brand
HELUKABEL
Supplier's product code
CANBUS-4X1X0.22-IN
Product ID
U-142142
Cable application
CAN bus
Cable external diameter
6.9mm
Cable structure
4x1x0.22mm<sup>2</sup>
Core diameter
24AWG
Core marking
colours without colour repetition
Core section
0.22mm<sup>2</sup>
Core structure
stranded
CPR standard
no classification
Earth core
none
Insulation colour
violet
Kind of core
Cu
Kind of material
no flame propagation
Manufacturer
HELUKABEL
Number of cores
4
Operating temperature
-40...70°C
Rated voltage
30V
Resistance to
to weather conditions
Shield structure
tinned copper braid
Type of wire
data transmission
Wire insulation material
PVC
