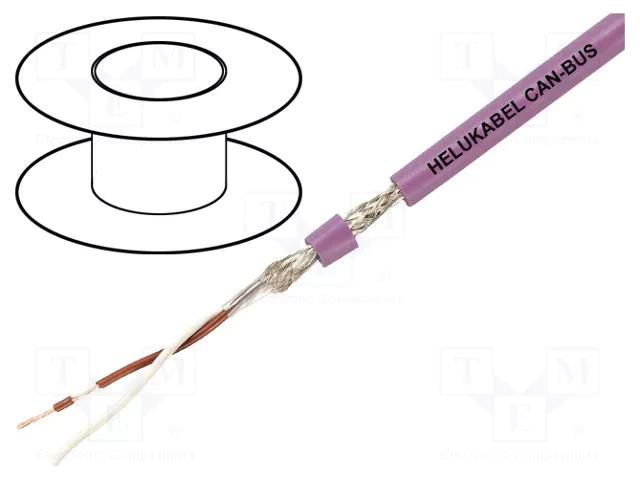

Wire: data transmission; 4x1x0.25mm2; violet; stranded; Cu; PUR HELUKABEL
Product Code: CANBUS-4X1X0.25-DC
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Wire: data transmission; 4x1x0.25mm2; violet; stranded; Cu; PUR HELUKABEL
Useful information
Specifications
Supplier product description
Wire: data transmission; 4x1x0.25mm2; violet; stranded; Cu; PUR
Useful information
Supplier parameters
Product code
CANBUS-4X1X0.25-DC
Cable application
power chain
Cable external diameter
6.5mm
Cable structure
4x1x0.25mm<sup>2</sup>
Core diameter
24AWG
Core marking
colours without colour repetition
Core section
0.22mm<sup>2</sup>
Core structure
stranded
CPR standard
no classification
Earth core
none
Insulation colour
violet
Kind of core
Cu
Kind of material
halogen free
Manufacturer
HELUKABEL
Number of cores
4
Operating temperature
-20...70°C
Resistance to
to weather conditions
Shield structure
tinned copper braid
Type of wire
data transmission
Wire insulation material
PUR
Supplier's product code
CANBUS-4X1X0.25-DC
Product ID
U-142143
Brand
HELUKABEL
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
