Product description

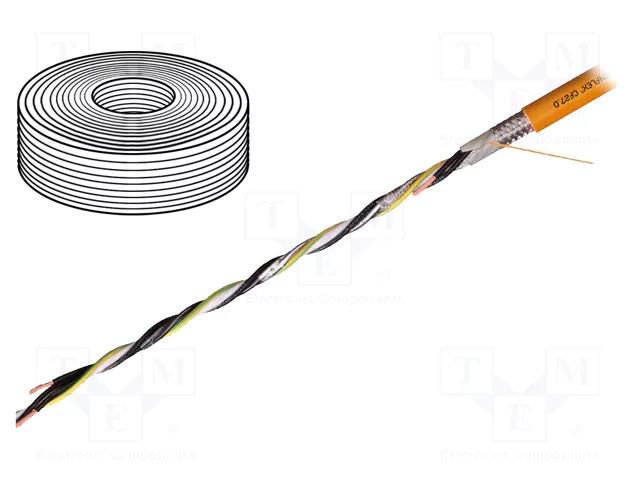

Wire: servo drive; chainflex® CF27.D,hybrid; orange; stranded; Cu IGUS
Useful information
Specifications
Supplier product description
Wire: servo drive; chainflex® CF27.D,hybrid; orange; stranded; Cu
Useful information
Supplier parameters
Product code
CF27.160.15.02.01D
Cable application
outdoor
Cable external diameter
24.5mm
Cable features
self-supporting
Cable structure
4G16mm<sup>2</sup>
Conform to the norm
UL 10492
Core marking
black, numbered + ground wire
Core section
1.5mm<sup>2</sup>
Core structure
stranded
CPR standard
no classification
Earth core
yellow-green
Information
The UL Label and Mark on full factory packaging only
Insulation colour
orange
Kind of core
Cu
Kind of material
halogen free
Kind of wire
chainflex® CF27.D
Manufacturer
IGUS
Number of cores
6
Operating temperature
-25...80°C
Rated voltage
1kV
Resistance to
most of oils
Shield structure
tinned copper braid
Type of wire
servo drive
Wire insulation material
PUR
Brand
IGUS
Supplier's product code
CF27.160.15.02.01D
Product ID
U-145138
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
