Product description

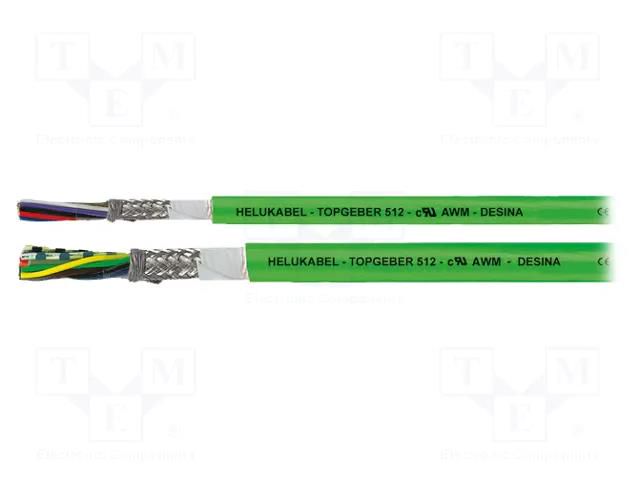

Wire: servo drive; TOPGEBER 512; hybrid; 2x0.5mm2,5x2x0.25mm2 HELU
Useful information
Specifications
SKU
U-2249163
Product code
TOPGEBER512-706333
Supplier product description
Wire: servo drive; TOPGEBER 512; hybrid; 2x0.5mm2,5x2x0.25mm2
Useful information
Supplier parameters
Product code
TOPGEBER512-706333
Cable application
automatics
Cable external diameter
8.8mm
Cable features
twisted pair conductors
Cable structure
2x0.5mm<sup>2</sup>
Core marking
colours without colour repetition
Core section
0.25mm<sup>2</sup>
Core structure
stranded
CPR standard
no classification
Earth core
none
Insulation colour
green
Kind of cable
hybrid
Kind of core
Cu
Kind of material
halogen free
Manufacturer
HELU
Manufacturer series
TOPGEBER 512
No. of pairs
5
Number of cores
12
Operating temperature
-30...80°C
Rated voltage
0.3kV
Resistance to
most of oils
Shield structure
tinned copper braid
Type of wire
servo drive
Wire insulation material
PUR
Supplier's product code
TOPGEBER512-706333
Product ID
U-2249163
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
