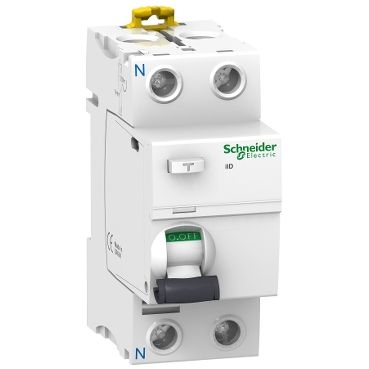

Circuit Breaker, Acti 9 iID, 240 V, 25 A, 2 Pole

Name: Circuit Breaker, Acti 9 iID, 240 V, 25 A, 2 Pole
Brand: Schneider Electric
SKU: 383960
Price: 51.00 EUR
Availability: InStock

Product Code: A9R61225

Price range

Amount	Price with tax (pcs)
1	€51.00
2+	€48.45
wholesale

*Total delivery cost will be calculated in the checkout.

Warehouse in Europe

94%+ positive feedback

30 day money back guarantee

Product description

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 25A, A-SI type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 15000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D) 73.5mm. The weight is 0.21kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Specifications

SKU

383960

Weight

0.236 kg.

Disconnectability, kA

Disconnection curve

N/A

Height, mm

Brand

Schneider Electric

Mounting

DIN

Width, mm

Poles description

2 P

Current, A

Product code

A9R61225

Depth, mm

Rated voltage DC, V

N/A

Rated voltage AC, V

230

Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence

Product description generated by artificial intelligence

Schneider Electric Acti9 iID 240V 25A 2 Pole Circuit Breaker

This Acti9 iID circuit breaker from Schneider Electric is a reliable and efficient solution for electrical protection in various applications. It's categorized as an automatic switch, offering dependable safety and performance.

Key Features and Benefits

Brand: Schneider Electric
Rated Voltage: 240V
Rated Current: 25A
Poles: 2
Type: Residual Current Circuit Breaker (RCCB)

This circuit breaker provides protection against overcurrents and short circuits, ensuring the safety of your electrical system and connected equipment. Its compact design makes it suitable for various installations.

Applications

The Acti9 iID 2-pole circuit breaker is ideal for a wide range of applications where reliable overcurrent and short-circuit protection is required. It is commonly used in residential, commercial, and industrial settings.

Why Choose This Product?

Choosing the Schneider Electric Acti9 iID circuit breaker offers several advantages:

Superior Quality: Schneider Electric is a trusted name in electrical equipment, known for its high-quality products and reliable performance.
Safety: This circuit breaker provides essential protection against electrical hazards.
Efficiency: Its design ensures efficient operation and minimal energy loss.
Ease of Installation: The circuit breaker is designed for easy installation and integration into existing systems.

Parameter	Value
Brand	Schneider Electric
Product Type	Circuit Breaker
Rated Voltage	240V
Rated Current	25A
Number of Poles	2

Ensure your electrical system is protected with the dependable performance of the Schneider Electric Acti9 iID circuit breaker.
