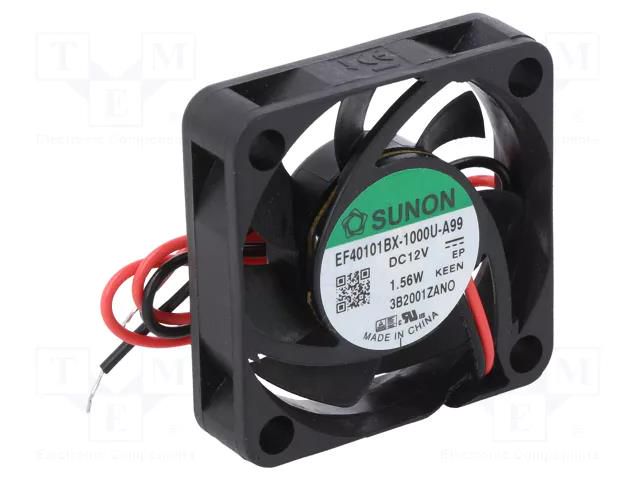

Fan: DC; axial; 12VDC; 40x40x10mm; 16.99m3/h; 33.7dBA; ball; 9000rpm SUNON
Product Code: EF40101BX-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 40x40x10mm; 16.99m3/h; 33.7dBA; ball; 9000rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 40x40x10mm; 16.99m3/h; 33.7dBA; ball; 9000rpm
Useful information
Supplier parameters
Brand
SUNON
Supplier's product code
EF40101BX-A99-A
Product ID
U-1871859
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.122A
Enclosure material
thermoplastic
Fan dimensions
40x40x10mm
Fan efficiency
16.99m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
33.7dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
1.47W
Rotational rate/speed
9000rpm
Static pressure
6.85mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Product code
EF40101BX-A99-A
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
