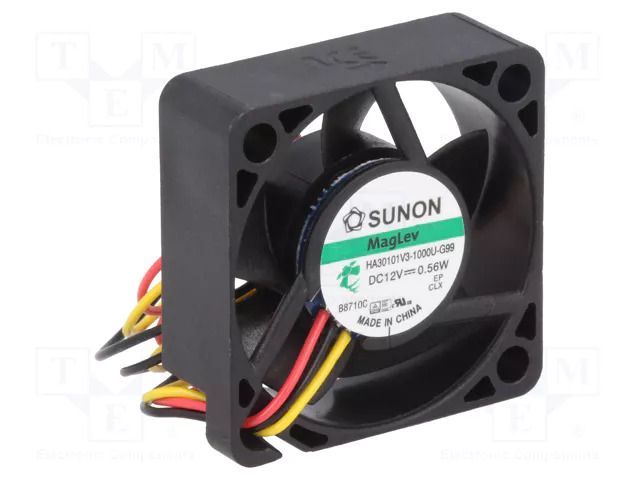

Fan: DC; axial; 12VDC; 30x30x10mm; 5.92m3/h; 15.1dBA; Vapo; 28AWG SUNON
Product Code: HA30101V3-G99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 30x30x10mm; 5.92m3/h; 15.1dBA; Vapo; 28AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 30x30x10mm; 5.92m3/h; 15.1dBA; Vapo; 28AWG
Useful information
Supplier parameters
Product code
HA30101V3-G99-A
Supplier's product code
HA30101V3-G99-A
Product ID
U-201264
Additional functions
Autorestart
Current and power consumption tolerance
±15%
Current rating
25mA
Enclosure material
thermoplastic
Fan dimensions
30x30x10mm
Fan efficiency
5.92m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.145m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
15.1dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
0.56W
Rotational rate/speed
7000 (±20%)rpm
Signal output
F type
Static pressure
2.54mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
28AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
