Fan: DC; axial; 12VDC; 30x30x10mm; 7.77m3/h; 20dBA; Vapo; Out: F type SUNON
Product Code: MF30101V2-G99-A

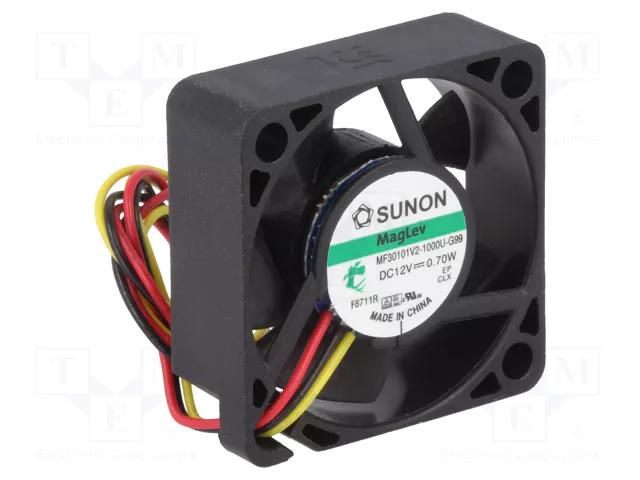

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 30x30x10mm; 7.77m3/h; 20dBA; Vapo; Out: F type SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 30x30x10mm; 7.77m3/h; 20dBA; Vapo; Out: F type
Useful information
Supplier parameters
Product code
MF30101V2-G99-A
Brand
SUNON
Supplier's product code
MF30101V2-G99-A
Product ID
U-255966
Additional functions
Autorestart
Current rating
32mA
Enclosure material
thermoplastic
Fan dimensions
30x30x10mm
Fan efficiency
7.77m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.145m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
20dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
0.39W
Rotational rate/speed
8600rpm
Signal output
F type
Static pressure
3.56mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
28AWG
