Fan: DC; axial; 12VDC; 40x40x20mm; 13.01m3/h; 21dBA; Vapo; 6000rpm SUNON
Product Code: MF40201V2-A99-A

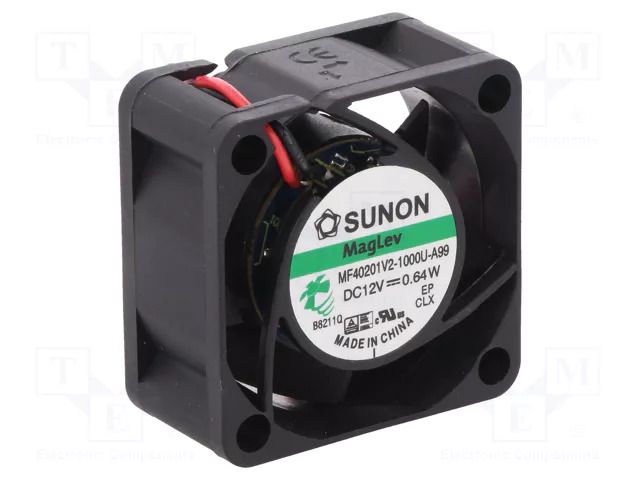

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 40x40x20mm; 13.01m3/h; 21dBA; Vapo; 6000rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 40x40x20mm; 13.01m3/h; 21dBA; Vapo; 6000rpm
Useful information
Supplier parameters
Product code
MF40201V2-A99-A
Additional functions
autorestart
Current rating
45mA
Enclosure material
thermoplastic
Fan dimensions
40x40x20mm
Fan efficiency
13.01m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.305m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
21dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
0.54W
Rotational rate/speed
6000rpm
Static pressure
4.32mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
Supplier's product code
MF40201V2-A99-A
Product ID
U-256021
