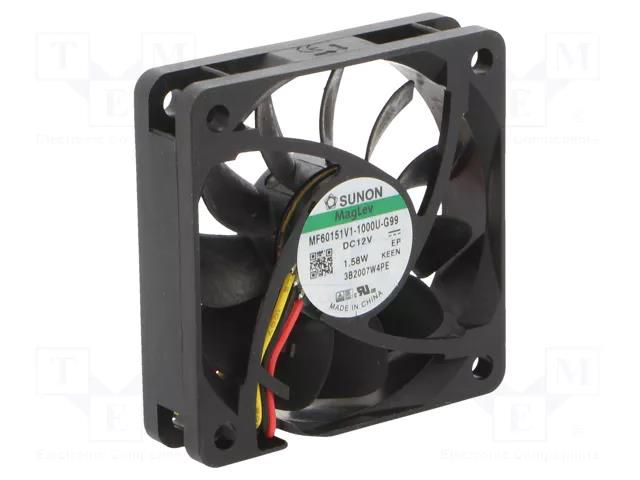

Fan: DC; axial; 12VDC; 60x60x15mm; 44.62m3/h; 34.2dBA; Vapo; 4700rpm SUNON
Product Code: MF60151V1-G99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 60x60x15mm; 44.62m3/h; 34.2dBA; Vapo; 4700rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 60x60x15mm; 44.62m3/h; 34.2dBA; Vapo; 4700rpm
Useful information
Supplier parameters
Product code
MF60151V1-G99-A
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.127A
Enclosure material
thermoplastic
Fan dimensions
60x60x15mm
Fan efficiency
44.62m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.29m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
34.2dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
1.53W
Rotational rate/speed
4700rpm
Signal output
F type
Static pressure
4.57mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
Supplier's product code
MF60151V1-G99-A
Product ID
U-256186
