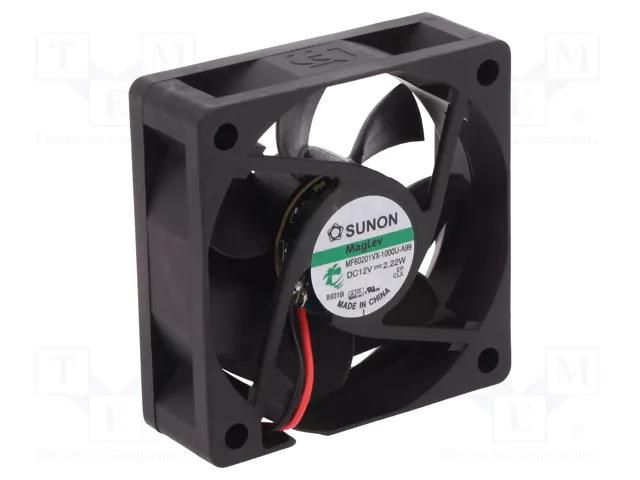

Fan: DC; axial; 12VDC; 60x60x20mm; 43.1m3/h; 39dBA; Vapo; 5700rpm SUNON
Product Code: MF60201VX-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 60x60x20mm; 43.1m3/h; 39dBA; Vapo; 5700rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 60x60x20mm; 43.1m3/h; 39dBA; Vapo; 5700rpm
Useful information
Supplier parameters
Product code
MF60201VX-A99-A
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.142A
Enclosure material
thermoplastic
Fan dimensions
60x60x20mm
Fan efficiency
43.1m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.29m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
39dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
1.71W
Related items
BUB-72H
Rotational rate/speed
5700rpm
Static pressure
6.86mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
Supplier's product code
MF60201VX-A99-A
Product ID
U-256195
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
