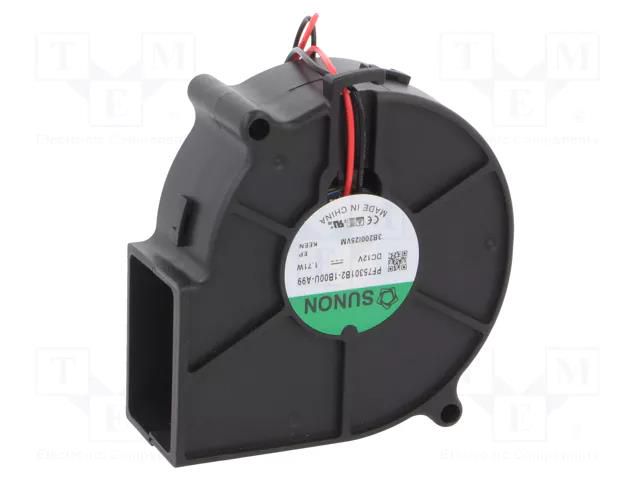

Fan: DC; blower; 12VDC; 75x75x30mm; 23.44m3/h; 38.6dBA; ball SUNON
Product Code: PF75301B2-A99-B
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; blower; 12VDC; 75x75x30mm; 23.44m3/h; 38.6dBA; ball SUNON
Useful information
Specifications
Supplier product description
Fan: DC; blower; 12VDC; 75x75x30mm; 23.44m3/h; 38.6dBA; ball
Useful information
Supplier parameters
Product code
PF75301B2-A99-B
Supplier's product code
PF75301B2-A99-B
Product ID
U-1930425
Additional functions
Autorestart
Current and power consumption tolerance
±15%
Current rating
0.142A
Enclosure material
thermoplastic
Fan dimensions
75x75x30mm
Fan efficiency
23.44m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
blower
Lead length
0.295m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
38.6dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
1.71W
Rotational rate/speed
3000rpm
Supply voltage
12V DC
Type of fan
DC
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
