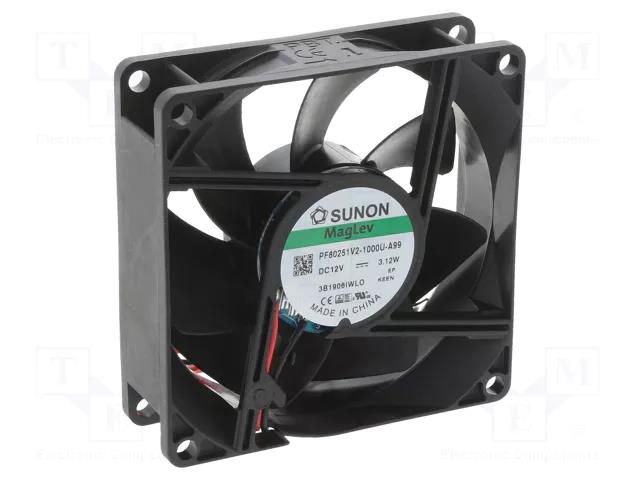

Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm SUNON
Product Code: PF80251V2-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm
Useful information
Supplier parameters
Product code
PF80251V2-A99-A
Supplier's product code
PF80251V2-A99-A
Product ID
U-286940
Additional functions
Autorestart
Current and power consumption tolerance
±15%
Current rating
0.24A
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
96.85m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.315m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
43.1dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
3.12W
Rotational rate/speed
4500rpm
Static pressure
8.88mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
