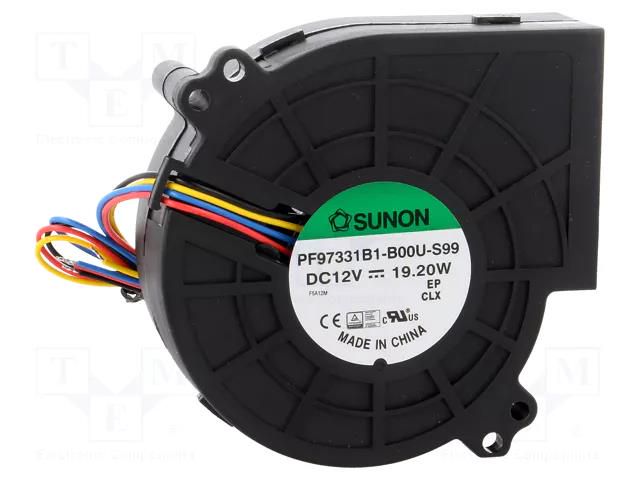

Fan: DC; blower; 12VDC; 97x95x33mm; 71.7m3/h; 58dBA; ball; 24AWG SUNON
Product Code: PF97331B1-S99
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; blower; 12VDC; 97x95x33mm; 71.7m3/h; 58dBA; ball; 24AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; blower; 12VDC; 97x95x33mm; 71.7m3/h; 58dBA; ball; 24AWG
Useful information
Supplier parameters
Product code
PF97331B1-S99
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
1.6A
Enclosure material
thermoplastic
Fan dimensions
97x95x33mm
Fan efficiency
71.7m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
blower
Lead length
0.3m
Leads
leads x4
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
58dBA
Operating temperature
-10...70°C
Operating voltage
10.2...13.2V DC
Power consumption
19.2W
Rotational rate/speed
5400 (±10%)rpm
Signal output
F type
Static pressure
86.06mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
Supplier's product code
PF97331B1-S99
Product ID
U-286958
