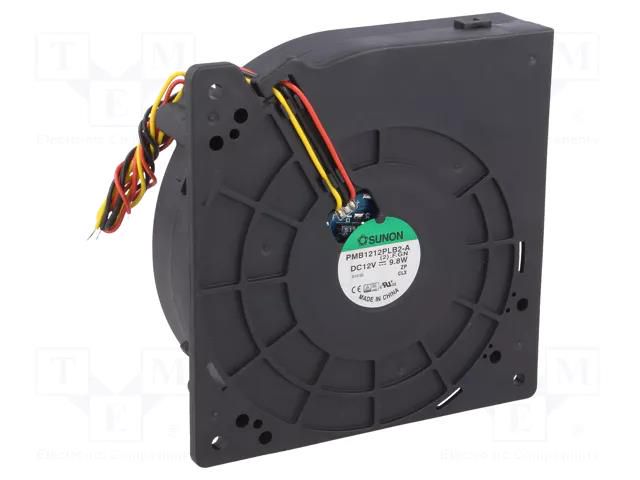

Fan: DC; blower; 12VDC; 120x120x32mm; 61m3/h; 53.8dBA; ball; 24AWG SUNON
Product Code: PMB1212PLB2AF
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; blower; 12VDC; 120x120x32mm; 61m3/h; 53.8dBA; ball; 24AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; blower; 12VDC; 120x120x32mm; 61m3/h; 53.8dBA; ball; 24AWG
Useful information
Supplier parameters
Product code
PMB1212PLB2AF
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.82A
Enclosure material
thermoplastic
Fan dimensions
120x120x32mm
Fan efficiency
61m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Kind of Bearing
ball
Kind of fan
blower
Lead length
0.3m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
53.8dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
9.8W
Rotational rate/speed
2500 (±10%)rpm
Signal output
F type
Static pressure
22.6mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Supplier's product code
PMB1212PLB2AF
Product ID
U-1881001
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
