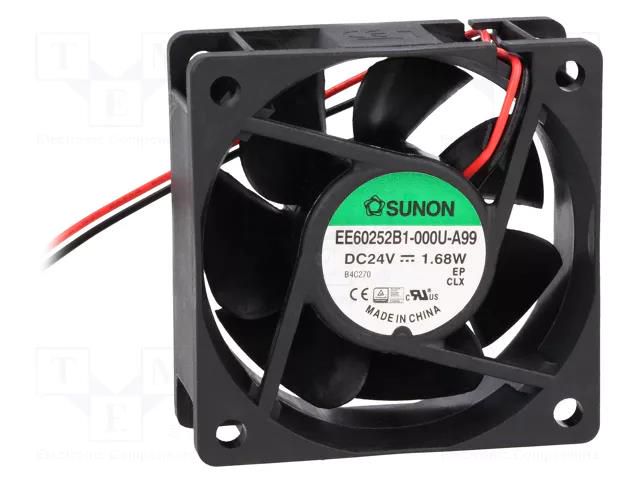

Fan: DC; axial; 24VDC; 60x60x25mm; 39.7m3/h; 34.5dBA; ball; 26AWG SUNON
Product Code: EE60252B1-A99
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 60x60x25mm; 39.7m3/h; 34.5dBA; ball; 26AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 60x60x25mm; 39.7m3/h; 34.5dBA; ball; 26AWG
Useful information
Supplier parameters
Product code
EE60252B1-A99
Supplier's product code
EE60252B1-A99
Product ID
U-176635
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
70mA
Enclosure material
thermoplastic
Fan dimensions
60x60x25mm
Fan efficiency
39.7m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
34.5dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V DC
Power consumption
1.68W
Related items
SRF4-30
Rotational rate/speed
4500 (±15%)rpm
Static pressure
5.33mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
