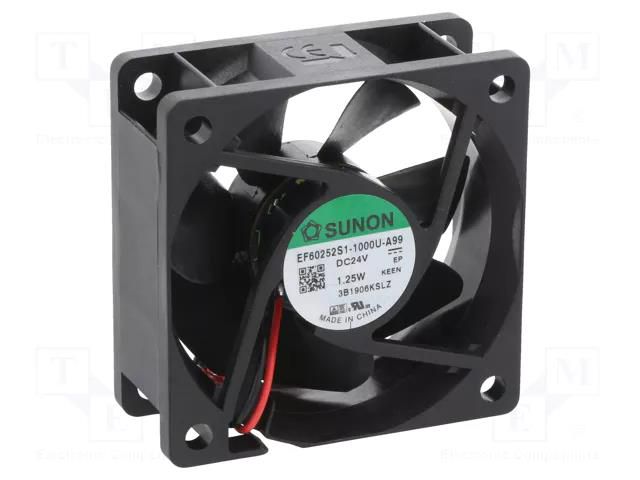

Fan: DC; axial; 24VDC; 60x60x25mm; 39.93m3/h; 27dBA; slide; 4500rpm SUNON
Product Code: EF60252S1-A99
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 60x60x25mm; 39.93m3/h; 27dBA; slide; 4500rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 60x60x25mm; 39.93m3/h; 27dBA; slide; 4500rpm
Useful information
Supplier parameters
Product code
EF60252S1-A99
Brand
SUNON
Supplier's product code
EF60252S1-A99
Product ID
U-177603
Additional functions
Autorestart
Current and power consumption tolerance
±15%
Current rating
50mA
Enclosure material
thermoplastic
Fan dimensions
60x60x25mm
Fan efficiency
39.93m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
slide
Kind of fan
axial
Lead length
0.29m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
27dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V DC
Power consumption
1.25W
Related items
SRF4-30
Rotational rate/speed
4500rpm
Supply voltage
24V DC
Type of fan
DC
Wire size
26AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
