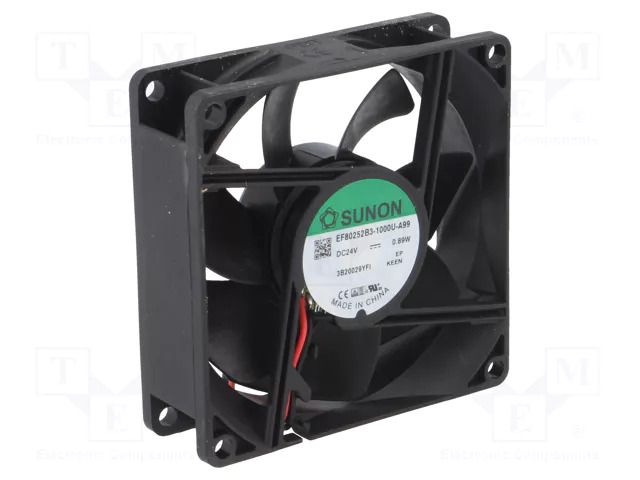

Fan: DC; axial; 24VDC; 80x80x25mm; 56.06m3/h; 28dBA; ball; 2600rpm SUNON
Product Code: EF80252B3-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 80x80x25mm; 56.06m3/h; 28dBA; ball; 2600rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 80x80x25mm; 56.06m3/h; 28dBA; ball; 2600rpm
Useful information
Supplier parameters
Brand
SUNON
Supplier's product code
EF80252B3-A99-A
Product ID
U-1907971
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
36mA
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
56.06m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.315m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
28dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V DC
Power consumption
0.89W
Rotational rate/speed
2600rpm
Supply voltage
24V DC
Type of fan
DC
Product code
EF80252B3-A99-A
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
