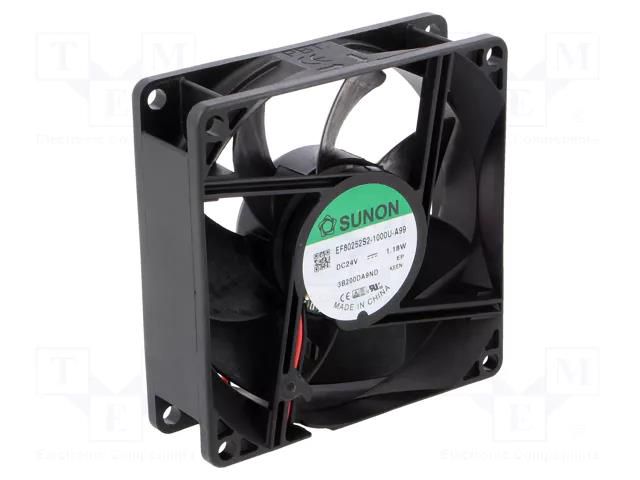

Fan: DC; axial; 24VDC; 80x80x25mm; 62.86m3/h; 30dBA; slide SUNON
Product Code: EF80252S2-A99
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 80x80x25mm; 62.86m3/h; 30dBA; slide SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 80x80x25mm; 62.86m3/h; 30dBA; slide
Useful information
Supplier parameters
Brand
SUNON
Supplier's product code
EF80252S2-A99
Product ID
U-177609
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
42mA
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
62.86m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
slide
Kind of fan
axial
Lead length
0.315m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
30dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V DC
Power consumption
1.18W
Rotational rate/speed
2900 (±10%)rpm
Static pressure
3.81mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Product code
EF80252S2-A99
