Fan: DC; axial; 24VDC; 60x60x25mm; 61.16m3/h; 44dBA; ball; 26AWG SUNON
Product Code: PE60252B1-G99

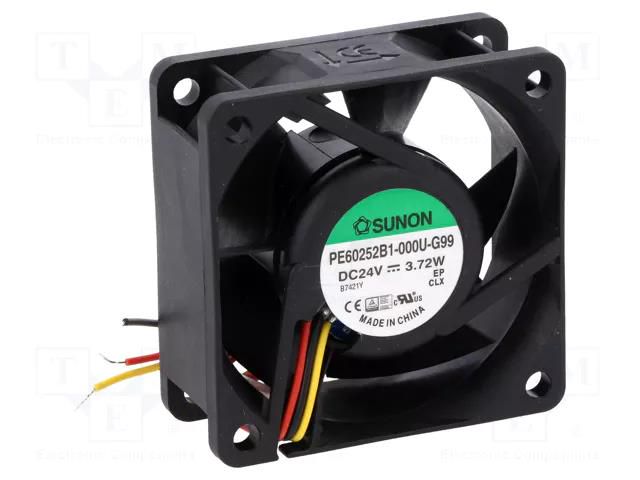

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 60x60x25mm; 61.16m3/h; 44dBA; ball; 26AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 60x60x25mm; 61.16m3/h; 44dBA; ball; 26AWG
Useful information
Supplier parameters
Product code
PE60252B1-G99
Supplier's product code
PE60252B1-G99
Product ID
U-286478
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.155A
Enclosure material
thermoplastic
Fan dimensions
60x60x25mm
Fan efficiency
61.16m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
44dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
3.72W
Related items
SRF4-30
Rotational rate/speed
6900 (±15%)rpm
Signal output
F type
Static pressure
13.71mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
