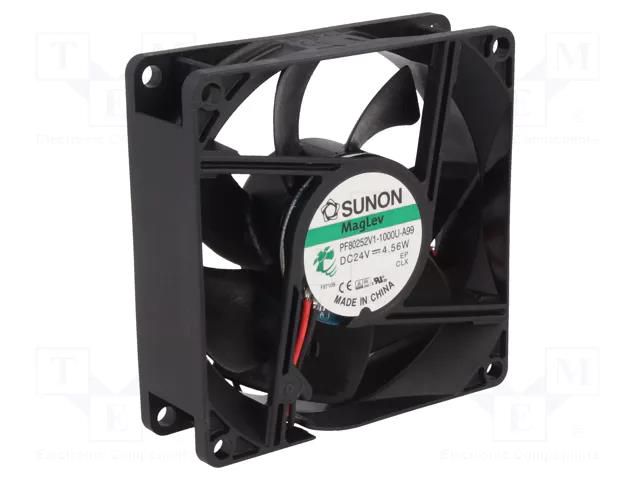

Fan: DC; axial; 24VDC; 80x80x25mm; 101.4m3/h; 44.7dBA; Vapo; 4800rpm SUNON
Product Code: PF80252V1-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 80x80x25mm; 101.4m3/h; 44.7dBA; Vapo; 4800rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 80x80x25mm; 101.4m3/h; 44.7dBA; Vapo; 4800rpm
Useful information
Supplier parameters
Product code
PF80252V1-A99-A
Additional functions
autorestart
Current rating
0.18A
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
101.4m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.315m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
44.7dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
4.32W
Rotational rate/speed
4800rpm
Static pressure
10.41mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
Supplier's product code
PF80252V1-A99-A
Product ID
U-286941
