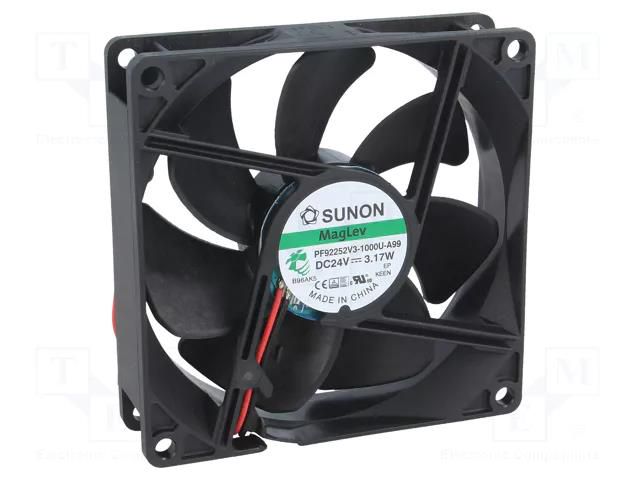

Fan: DC; axial; 24VDC; 92x92x25mm; 109.85m3/h; 41.6dBA; Vapo; 24AWG SUNON
Product Code: PF92252V3-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 92x92x25mm; 109.85m3/h; 41.6dBA; Vapo; 24AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 92x92x25mm; 109.85m3/h; 41.6dBA; Vapo; 24AWG
Useful information
Supplier parameters
Product code
PF92252V3-A99-A
Supplier's product code
PF92252V3-A99-A
Product ID
U-286955
Additional functions
autorestart
Current rating
0.126A
Enclosure material
thermoplastic
Fan dimensions
92x92x25mm
Fan efficiency
109.85m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.305m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
41.6dBA
Operating voltage
10...27.6V DC
Power consumption
3.03W
Rotational rate/speed
3200rpm
Static pressure
6.35mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
