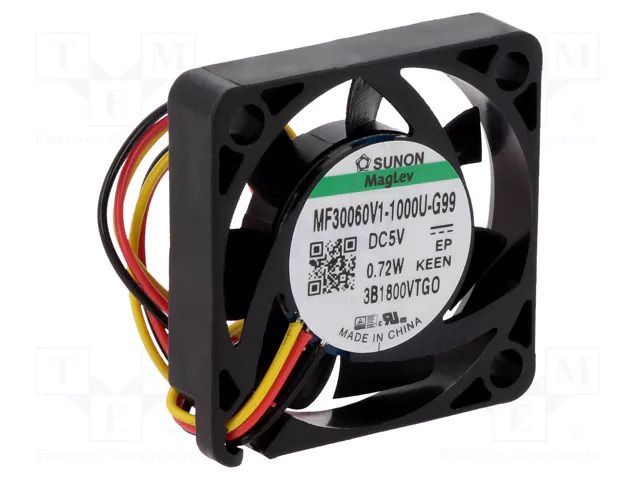

Fan: DC; axial; 5VDC; 30x30x6mm; 8.28m3/h; 23.6dBA; Vapo; Out: F type SUNON
Product Code: MF30060V1-G99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 5VDC; 30x30x6mm; 8.28m3/h; 23.6dBA; Vapo; Out: F type SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 5VDC; 30x30x6mm; 8.28m3/h; 23.6dBA; Vapo; Out: F type
Useful information
Supplier parameters
Product code
MF30060V1-G99-A
Additional functions
autorestart
Current rating
0.112A
Enclosure material
thermoplastic
Fan dimensions
30x30x6mm
Fan efficiency
8.28m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.145m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
23.6dBA
Operating temperature
-10...70°C
Operating voltage
2.5...6V DC
Power consumption
0.56W
Rotational rate/speed
9100rpm
Signal output
F type
Static pressure
4.32mm H<sub>2</sub>O
Supply voltage
5V DC
Type of fan
DC
Wire size
28AWG
Supplier's product code
MF30060V1-G99-A
Product ID
U-255947
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
