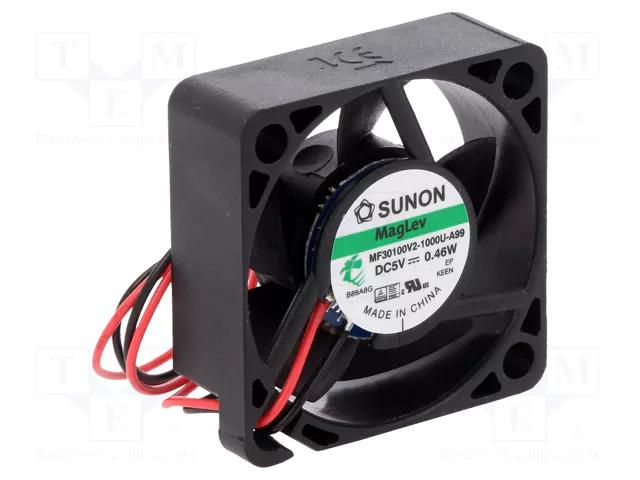

Fan: DC; axial; 5VDC; 30x30x10mm; 7.94m3/h; 21dBA; Vapo; 9500rpm SUNON
Product Code: MF30100V2-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 5VDC; 30x30x10mm; 7.94m3/h; 21dBA; Vapo; 9500rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 5VDC; 30x30x10mm; 7.94m3/h; 21dBA; Vapo; 9500rpm
Useful information
Supplier parameters
Product code
MF30100V2-A99-A
Brand
SUNON
Supplier's product code
MF30100V2-A99-A
Product ID
U-255962
Additional functions
Autorestart
Current rating
80mA
Enclosure material
thermoplastic
Fan dimensions
30x30x10mm
Fan efficiency
7.94m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.145m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
21dBA
Operating temperature
-10...70°C
Operating voltage
2.5...6V DC
Power consumption
0.4W
Rotational rate/speed
9500rpm
Static pressure
4.32mm H<sub>2</sub>O
Supply voltage
5V DC
Type of fan
DC
Wire size
28AWG
