Product description

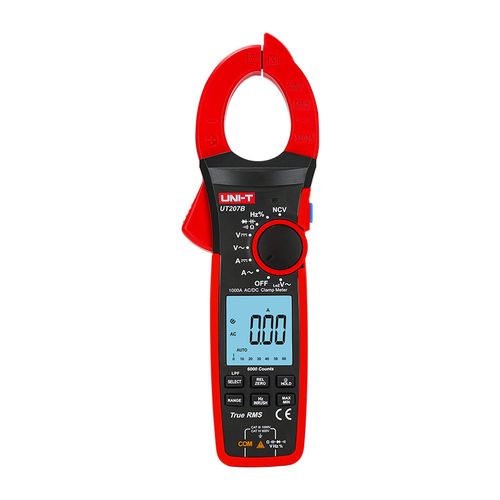

UT200 Series 1000A True RMS Digital Clamp Meters
UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current. The UT206B and UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe toextend the AC current measurement range to 3000A.
Models in UT200 series: UT205E, UT206B, UT207B, UT208B
Features of UT200 Series 1000A True RMS Digital Clamp Meters
Certifications: CE, UKCA, cETLus
● Flashlight button: Short press this button to turn on/off the flashlight
● NCV Multi-Segment Display and audio/visual alarm
● True RMS/Auto backlight
● NCV/Function retention
Specifications of UT200 Series 1000A True RMS Digital Clamp Meters
|
Specifications |
Range |
UT205E |
UT206B |
UT207B |
UT208B |
|
AC current (A) |
1000A |
±(2%+5) |
±(2%+5) |
±(2%+5) |
±(2%+5) |
|
DC current (A) |
1000A |
±(2%+5) |
±(2%+5) |
||
|
AC current frequency response |
50Hz~60Hz |
50Hz~60Hz |
40Hz~400Hz |
40Hz~400Hz |
|
|
Inrush current (A) |
1000A |
±(10%+10) |
±(10%+10) |
±(10%+10) |
|
|
AC voltage (V) |
1000V |
±(1.2%+3) |
±(1.2%+3) |
±(1.2%+3) |
±(1.2%+3) |
|
DC voltage (V) |
1000V |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
|
Low pas filter (LPF ACV) |
1000V |
±(2%+5) |
±(2%+5) |
±(2%+5) |
|
|
AC voltage frequency response |
40Hz~400Hz |
40Hz~400Hz |
40Hz~400Hz |
40Hz~400Hz |
|
|
LoZ ACV |
1000V |
±(2%+5) |
±(2%+5) |
±(2%+5) |
|
|
Resistance (Ω) |
60MΩ |
±(1%+2) |
±(1%+2) |
±(1%+2) |
±(1%+2) |
|
Capacitance (F) |
60mF |
±(4%+5) |
±(4%+5) |
±(4%+5) |
±(4%+5) |
|
Temperature |
-40℃~1000℃ |
±(1%+2) |
±(1%+2) |
||
|
-40℉~1832℉ |
±(1%+4) |
±(1%+4) |
|||
|
Low voltage frequency (Hz) |
10Hz~1MHz |
±(0.1%+3) |
±(0.1%+3) |
±(0.1%+3) |
±(0.1%+3) |
|
Duty cycle (%) |
10%~90% |
±(2.6%+7) |
±(2.6%+7) |
±(2.6%+7) |
±(2.6%+7) |
|
Analog bar |
31 |
31 |
31 |
||
|
Flexible current probe (optional) |
Extends up to 3000A |
√ |
√ |
||
|
Zero mode |
√ |
√ |
|||
|
Display count |
6000 |
6000 |
6000 |
6000 |
|
|
Jaw opening |
42mm |
42mm |
42mm |
42mm |
|
|
General Characteristics |
|||||
|
Power |
1.5V battery (R03) x 3 |
||||
|
Display |
43mm x 45mm |
||||
|
Product net weight |
UT205E/UT206B: 465g; UT207B/UT208B: 420g |
||||
|
Product size |
272mm x 81mm x 43.5mm |
||||
|
Standard accessories |
Test leads, batteries, point contact temperature probe (UT206B/UT208B), English manual |
||||
|
Standard individual packing |
Gift box, carrying bag |
||||
|
Standard quantity per carton |
UT205E/UT206B/UT207B: 10pcs; UT208B: 5pcs |
||||
|
Standard carton measurement |
UT205E/UT206B/UT207B: 355mm x 330mm x 315mm; UT208B: 355mm x 330mm x 165mm |
||||
|
Standard carton gross weight |
UT205E/UT206B/UT207B: About 7.1kg; UT208B: About 4.5kg |
||||
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T UT200 Series Digital Clamp Meter
The UNI-T UT200 series are 6000-count digital clamp meters offering a range of advanced features for accurate and safe electrical measurements. These versatile tools are ideal for electricians, technicians, and anyone requiring precise readings in various applications.
Key Features and Specifications
- True RMS Measurement: Ensures accurate readings even with non-sinusoidal waveforms.
- Auto Range: Simplifies operation and prevents accidental overload.
- Large LCD Display: Provides clear and easy-to-read measurements.
- DC/AC Voltage: Measures up to 1000V.
- DC/AC Current: Measures up to 1000A.
- Resistance: Measures up to 60MΩ.
- Capacitance: Measures up to 60mF.
- Frequency: Measures up to 1MHz.
- Safety Rating: Conforms to CAT III 1000V/CAT IV 600V safety standards.
Applications
This digital clamp meter is suitable for a wide array of applications, including:
- Electrical troubleshooting and maintenance
- Industrial automation and control
- Automotive diagnostics
- HVAC/R system testing
Why Choose UNI-T?
UNI-T is a trusted brand known for its high-quality, reliable test and measurement equipment. This clamp meter combines precision, safety, and ease of use, making it an excellent choice for professionals and hobbyists alike.
| Parameter | Value |
|---|---|
| Model | UT200 Series |
| Brand | UNI-T |
| Type | Digital Clamp Meter |
Note: Specific model variations within the UT200 series may have additional features or slightly different specifications. Please refer to the individual product listing for complete details.
