Product description

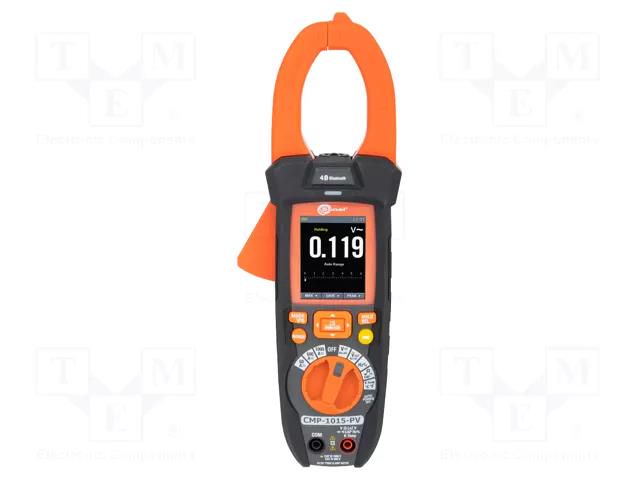

Meter: multifunction; VAC accuracy: ±(1.2%+5digit); VAC: 1kV; 60MΩ SONEL
Specifications
SKU
U-2714589
Product code
CMP-1015-PV
Supplier product description
Meter: multifunction; VAC accuracy: ±(1.2%+5digit); VAC: 1kV; 60MΩ
Supplier parameters
Product code
CMP-1015-PV
AC current measuring accuracy
±(2.5% + 5 digit)
AC current measuring range
1kA
AC voltage measuring accuracy
±(1.2% + 5 digit)
AC voltage measuring range
1kV
Application
photovoltaics
Battery/ rechargeable battery
rechargeable battery Li-Po 7,4V 1200mAh x1
Body dimensions
273x96x48mm
Capacitance measuring accuracy
±(3%+ 8 digit)
Capacitance measuring range
100mF
Communictions protocol
Bluetooth
Conform to the norm
EN 61010
DC current measuring accuracy
±(2% + 8 digit)
DC current measuring range
1kA
DC voltage measuring accuracy
±(0.5% + 5 digit)
DC voltage measuring range
1.5kV
Frequency measuring accuracy
±(0.2%+5 digit)
Frequency measuring range
10MHz
Illumination
yes
IP rating
IP40
Kind of display used
LCD
Kind of meter
digital
Manufacturer
SONEL
Measurement memory
128
Measuring instrument features
automatic power-off
Operating temperature
5...40°C
Related items
WAPRZ002BLBBF10
Resistance measuring accuracy
±(0.8%+5 digit)
Resistance measuring range
60MΩ
Software
dedicated mobile app
Standard equipment
test leads
Storage temperature
-20...60°C
Temperature measurement accuracy
±(1.5% + 4 digit)
Temperature measuring range
-40...1000°C
Test
diodes
Type of meter
multifunction
True effective value measurement
True RMS
Brand
SONEL
Supplier's product code
CMP-1015-PV
Product ID
U-2714589
