Digital Multimeter, DC/AC voltage: 1000V; DC/AC current: 20A; Resistance: 220MOm; Capacitance: 220mF; Frequency: 220MHz; , UNI-T
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

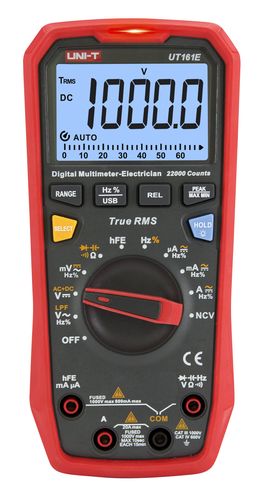

UT161 Series 1000V True RMS Digital Multimeters
UT161 series are reliable true RMS digital multimeters with display counts 6000 (UT161B/D) and 22,000 (UT161E). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
UT161 series are CE certified, suitable for the European market.
Models in UT161 series: UT161B, UT161D, UT161E
Features of UT161 Series 1000V True RMS Digital Multimeters
Certifications: CE, UKCA, cETLus
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
Specifications of UT161 Series 1000V True RMS Digital Multimeters
|
Specifications |
Range |
UT161B |
UT161D |
UT161E |
|
AC voltage (V) |
1000V |
±(1%＋3) |
±(1%＋3) |
±(0.8%＋10) |
|
DC voltage (V) |
1000V |
±(0.5%＋3) |
±(0.5%＋3) |
±(0.05%＋5) |
|
AC current (A) |
10A |
±(1.2%＋5) |
||
|
20A |
±(1.2%＋5) |
±(0.8%＋10) |
||
|
DC current (A) |
10A |
±(1%＋2) |
||
|
20A |
±(1%＋2) |
±(0.5%＋10) |
||
|
Resistance (Ω) |
60MΩ |
±(1%＋2) |
±(1%＋2) |
|
|
220MΩ |
±(0.5%＋10) |
|||
|
Capacitance (F) |
60mF |
±(3%＋5) |
±(3%＋5) |
|
|
220mF |
±(3%＋5) |
|||
|
Frequency (Hz) |
10MHz |
±(0.1%＋4) |
±(0.1%＋4) |
|
|
220MHz |
±(0.01%＋5) |
|||
|
Duty cycle (%) |
0.1%~99.9% |
±(2%＋5) |
±(2%＋5) |
±(2%＋5) |
|
Temperature (℃/℉) |
-40℃~1000℃ |
±(1%＋3) |
||
|
-40℉~1832℉ |
±(1%＋6) |
|||
|
Display count |
6000 |
6000 |
22000 |
|
|
Bandwidth (Hz) |
40Hz~500Hz |
40Hz~1kHz |
40~10kHz |
|
|
LPF ACV |
√ |
|||
|
LoZ ACV |
√ |
|||
|
ACV+DCV |
√ |
|||
|
Transistor hFE |
√ |
|||
|
Peak Hold |
√ |
√ |
||
|
Analog bar |
31 |
31 |
46 |
|
|
General Characteristics |
||||
|
Power |
1.5V battery (R03) x 4 |
|||
|
Product net weight |
350g |
|||
|
Product size |
190mm x 90mm x 50mm |
|||
|
Standard accessories |
Battery, gold plated test leads, USB cable, temperature probe (161D), |
|||
|
Standard individual packing |
Gift box, cloth bag |
|||
|
Standard quantity per carton |
20pcs |
|||
|
Standard carton measurement |
UT161 series: 480mm x 370mm x 325mm |
|||
|
Standard carton gross weight |
UT161 series: 17.8kg |
|||
|
Optional accessories |
Bluetooth/APP |
|||
Useful information
Specifications
Product description generated by artificial intelligence
UNI-T Digital Multimeter: Precision Measurement Redefined
The UNI-T Digital Multimeter is a versatile and reliable tool for various applications, offering precise measurements of voltage, current, resistance, capacitance, and frequency. This true RMS multimeter is designed for professionals and hobbyists alike, providing accurate readings with ease of use.
Key Features and Specifications
- True RMS Measurement: Ensures accurate readings even with non-sinusoidal waveforms.
- High Voltage and Current Measurement: Measures AC/DC voltage up to 1000V and AC/DC current up to 20A.
- Wide Measurement Range: Resistance measurement up to 220MΩ and capacitance measurement up to 220mF.
- High Frequency Measurement: Measures frequency up to 220MHz.
- User-Friendly Design: Intuitive interface and clear display for easy operation.
- Safety and Compliance: CE/ETL/UKCA certified for safe and reliable operation.
Applications
This UNI-T Digital Multimeter is ideal for a wide range of applications, including:
- Electrical troubleshooting and maintenance
- Electronics repair and testing
- Automotive diagnostics
- Industrial applications
- Educational purposes
Why Choose This UNI-T Multimeter?
The UNI-T Digital Multimeter stands out due to its combination of accuracy, versatility, and ease of use. Its comprehensive measurement capabilities, coupled with its robust construction and safety certifications, make it a valuable asset for any professional or serious hobbyist.
| Parameter | Value |
|---|---|
| DC/AC Voltage | 1000V |
| DC/AC Current | 20A |
| Resistance | 220MΩ |
| Capacitance | 220mF |
| Frequency | 220MHz |
Order your UNI-T Digital Multimeter today and experience the difference!
