Relay: interface; SPST-NO; Ucoil: 230VAC,220VDC; 50mA; 0.05A/30VAC PHOENIX CONTACT
Product Code: PLC-RPT-230UC/SEN

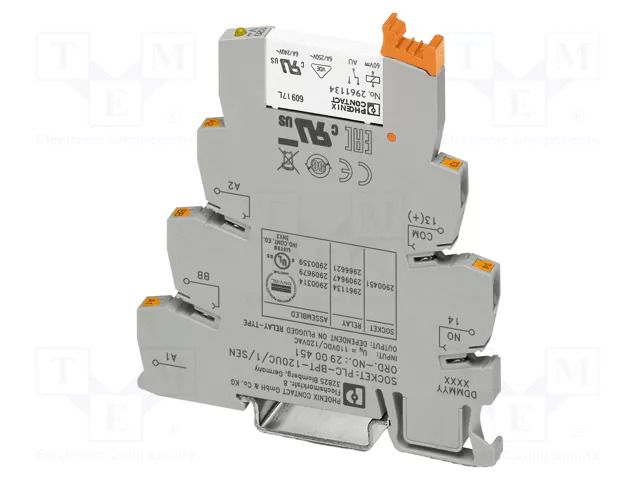

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: interface; SPST-NO; Ucoil: 230VAC,220VDC; 50mA; 0.05A/30VAC PHOENIX CONTACT
Useful information
Specifications
Supplier product description
Relay: interface; SPST-NO; Ucoil: 230VAC,220VDC; 50mA; 0.05A/30VAC
Useful information
Supplier parameters
Product code
PLC-RPT-230UC/SEN
Brand
PHOENIX CONTACT
Supplier's product code
PLC-RPT-230UC/SEN
Product ID
U-2359012
AC contacts rating @R
0.05A / 30V AC
Body dimensions
6.2x80x94mm
Coil voltage max.
264.5V AC
Coil voltage min.
179.4V AC
Contacts configuration
SPST-NO
DC contacts rating @R
0.05A / 36V DC
Electrical connection
push-in terminals
IP rating
IP20
Manufacturer
PHOENIX CONTACT
Manufacturer series
PLC-RPT
Max. operating current
50mA
Mechanical durability
20000000 cycles
Mounting
for DIN rail mounting
Operating temperature
-40...70°C
Rated coil voltage
220V DC
Relay variant
interface
Switched voltage
max. 30V AC
Type of relay
interface
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
