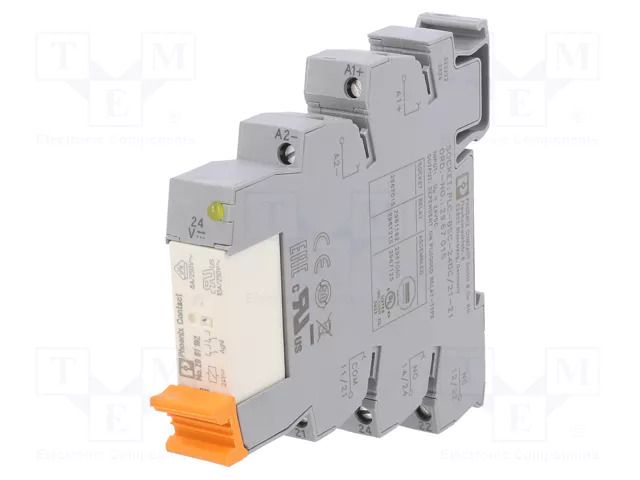

Relay: interface; DPDT; Ucoil: 24VDC; 6A; 3A/250VAC; 2A/24VDC; IP20 PHOENIX CONTACT
Product Code: PLC-RSC-24DC/21-21
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: interface; DPDT; Ucoil: 24VDC; 6A; 3A/250VAC; 2A/24VDC; IP20 PHOENIX CONTACT
Useful information
Specifications
Supplier product description
Relay: interface; DPDT; Ucoil: 24VDC; 6A; 3A/250VAC; 2A/24VDC; IP20
Useful information
Supplier parameters
Brand
PHOENIX CONTACT
Supplier's product code
PLC-RSC-24DC/21-21
Product ID
U-2359104
AC contacts rating @R
3A / 250V AC
Body dimensions
14x80x94mm
Coil current
18mA
Coil voltage max.
33.6V DC
Coil voltage min.
20.2V DC
Contact material
AgNi
Contacts configuration
DPDT
DC contacts rating @R
2A / 24V DC
Electrical connection
screw terminals
IP rating
IP20
Manufacturer
PHOENIX CONTACT
Manufacturer series
PLC-RSC
Max. operating current
6A
Mechanical durability
300000000 cycles
Mounting
for DIN rail mounting
Operate time
8ms
Operating temperature
-40...60°C
Rated coil voltage
24V DC
Relay variant
interface
Switched voltage
max. 250V DC
Type of relay
interface
Turn-off time
10ms
Product code
PLC-RSC-24DC/21-21
