Relay: interface; 4PDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/30VDC; PT TE Connectivity
Product Code: PT5L7LC4

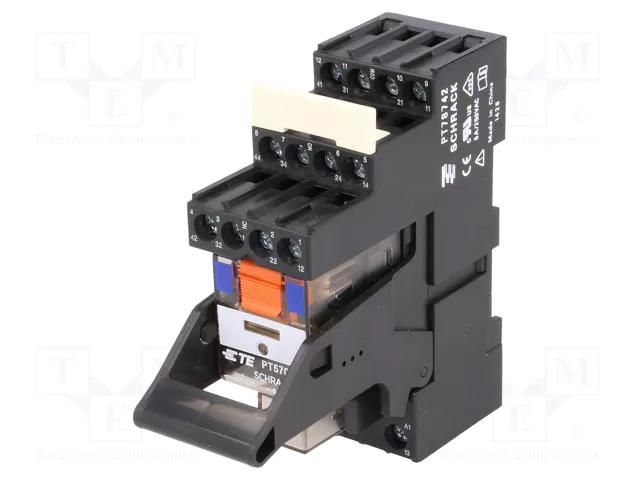

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: interface; 4PDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/30VDC; PT TE Connectivity
Useful information
Specifications
Supplier product description
Relay: interface; 4PDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/30VDC; PT
Useful information
Supplier parameters
Product code
PT5L7LC4
Supplier's product code
PT5L7LC4
Product ID
U-297176
AC contacts rating @R
6A / 250V AC
Body dimensions
78.3x77x27.2mm
Coil power consumption
741mW
Coil resistance
777Ω
Contacts configuration
4PDT
DC contacts rating @R
6A / 30V DC
Kit contents
indication module PTML0024
Leads
screw terminals
Manufacturer
TE Connectivity
Manufacturer series
PT
Max. operating current
6A
Mounting
for DIN rail mounting
Operating temperature
-40...70°C
Rated coil voltage
24V DC
Relay variant
Relay set
Switched voltage
max. 160V DC
Switching capacity
1.5kVA
Type of relay
interface
Brand
TE Connectivity
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
