Relay: interface; DPDT; Ucoil: 24VAC; 50mA; 0.05A/30VAC; max.36VDC PHOENIX CONTACT
Product Code: RIF-1RPT-24AC/2XAU

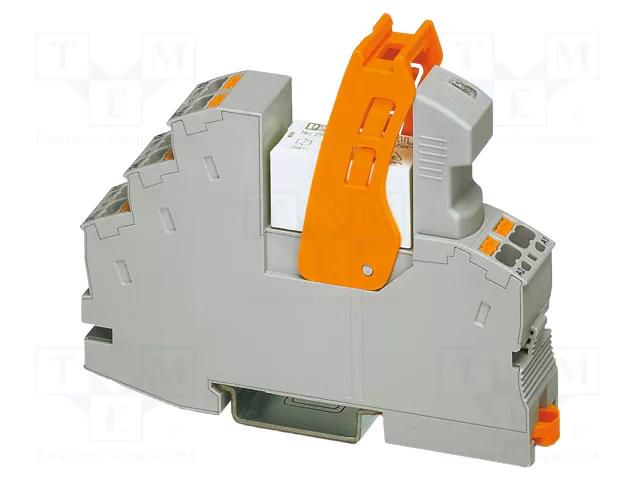

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: interface; DPDT; Ucoil: 24VAC; 50mA; 0.05A/30VAC; max.36VDC PHOENIX CONTACT
Useful information
Specifications
Supplier product description
Relay: interface; DPDT; Ucoil: 24VAC; 50mA; 0.05A/30VAC; max.36VDC
Useful information
Supplier parameters
Product code
RIF-1RPT-24AC/2XAU
Brand
PHOENIX CONTACT
Supplier's product code
RIF-1RPT-24AC/2XAU
Product ID
U-2359340
AC contacts rating @R
0.05A / 30V AC
Body dimensions
75x16x96mm
Contact material
AgNi + Au
Contacts configuration
DPDT
DC contacts rating @R
0.05A / 36V DC
Electrical connection
Push-in
Manufacturer
PHOENIX CONTACT
Max. operating current
50mA
Mechanical durability
10000000 cycles
Mounting
for DIN rail mounting
Operating temperature
-40...50°C
Rated coil voltage
24V AC
Switched voltage
max. 30V AC
Type of relay
interface
