Product description

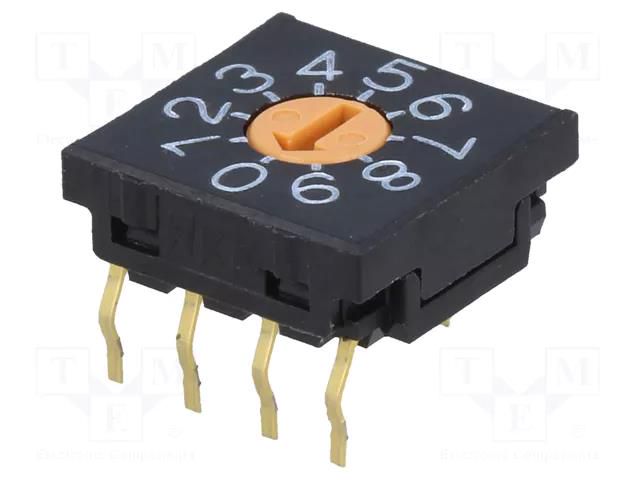

Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 100mΩ; 10x10x4mm NKK SWITCHES
Useful information
Specifications
SKU
U-1930326
Product code
FR01FR10P-S
Supplier product description
Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 100mΩ; 10x10x4mm
Useful information
Supplier parameters
Product code
FR01FR10P-S
Product ID
U-1930326
Body dimensions
10x10x4mm
Body material
polyamide
Contact material
copper alloy
Contact plating
gold-plated
DC contacts rating @R
0.1A / 5V DC
Electrical life
10000 cycles
Illumination
none
Kind of encoding switch
DEC/BCD
Kind of material
fiber glass reinforced
Leads
for PCB
Manufacturer
NKK SWITCHES
Manufacturer series
FR01
Max. contact resistance
:100mΩ
Mechanical durability
10000 cycles
Min. insulation resistance
1GΩ
Mounting
THT
Number of positions
10
Number of terminals
5
Operating temperature
-25...85°C
Poles number
1
Stable positions number
10
Switching method
BBM (non-shorting)
Terminal pitch
2.54mm
Type of switch
encoding switch
Supplier's product code
FR01FR10P-S
