Product description
Extralink 6U 10" Gray Wall-Mounted Rack Cabinet, EXTRALINK
Specifications
Supplier product description

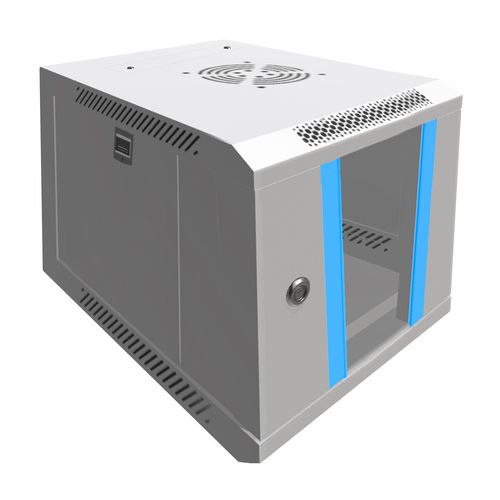

EXTRALINK 6U 10" rack cabinet
The Extralink rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The external walls are made of cold-rolled steel sheet, while the front door has a tempered glass pane with the possibility of opening to the left or right side.
Clearly marked cabinet height
Vertical rails have a corresponding height designation, which is 6U (unit). The total height of the cabinet is 37 cm.
Easy removal of side walls
Clips on the side walls allow for their removal.
Ceiling with fan installation possibility
On the ceiling of the cabinet there is space to install a fan for better cooling of the devices, as well as additional conduit for pulling out cables.
Cabinet construction - drawing
Features
- Welded frame, reliable design
- The frame structure is prepared for self-assembly, which makes it easy to transport, saving shipping costs
- Standing/Wall Mounting
- Easy installation (patent)
- Removable side panels
- Holes for cable entry, both on the top cover and on the bottom panel
- Tempered glass front door, swivel angle exceeding 180 degrees
| Key lock | Tak |
| Frame type | Closed |
| Size (imperial) | 19,0000 |
| Height | 370,0000 |
| Width | 300,0000 |
| Depth | 300,0000 |
| Product colour | grey |
| Maximum weight capacity | 60,0000 |
| Rack capacity | 6u |
| Cable management | Tak |
| Type | wall_mounted_rack |
| Type | Wall mounted rack |
| Removable back door | Nie |
| Removable front door | Tak |
| Back door construction | steel |
| Front door construction | glass |
| Side panel construction | steel |
| Back door key lock | Tak |
| Front door key lock | Tak |
| Side panels included | Tak |
| Colour | gray |
| Cooling type | passive |
| Material | steel, tempered_glass |
| Removable side panels | Tak |
Supplier parameters
Product code
EX.14473
Brand
EXTRALINK
Supplier's product code
EX.14473
Product ID
U-3954712
