Product description
Extralink 72F | Fiber optic cable | 1,5kN FRP, 72J G652D, 10mm, duct, 4km, EXTRALINK
Specifications
Supplier product description

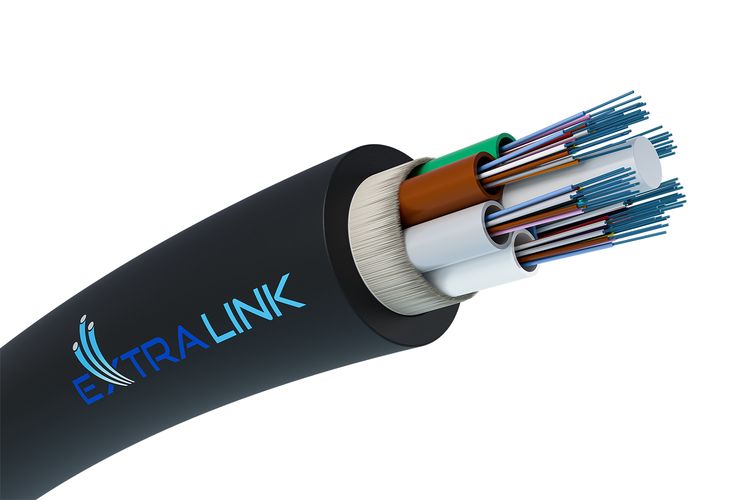

72F SM DUCT OPTICAL FIBRE CABLE SM G652D DIAMETER 10MM 1.5KN
Extralink Duct Optical Cable is a single-mode optic fibre cable with a diameter of 10 mm, 72 G652D type fibres that are inserted into loose tubes twisted around a central FRP pole, which serves as a reinforcing element. The cable is covered with an HDPE
Extralink Duct Optical Cable to kabel światłowodowy przeznaczony do zastosowań w mikrokanalizacji. Jego konstrukcja składa się z 72 włókien typu G.652D umieszczonych w luźnych tubach skręconych wokół centralnie położonego pręta FRP, który stanowi element wzmacniający. Kabel pokrywa powłoka HDPE.
Features of optical fibre cables
Features of optical fibre cables
- Various fibre types, including hybrids
- Wet core standard (optional)
Applications
Applications
- Underground and tied overhead duct
- Transmission, distribution, power supply cables
- Local loop, Metro & Long Haul
| Cabel for assembly | Duct |
| Cabel for assembly | Outside the building |
| Fiber standard | G.652.D |
| Number of fibers | 72F |
| Cable diameter | 10mm |
| Cable diameter | 1 |
| Cable length | 4000 |
| Cable type | FTTH |
| Cable weight | 80 |
| Certification | CE, RoHs |
| Cladding diameter | 245 |
| Connector 1 | No |
| Connector 1 gender | No |
| Connector 2 | No |
| Connector 2 gender | No |
| Core diameter | 125 |
| Fiber mode structure | Single-mode |
| Fibre optic type | G.652D |
| Jacket material | High-Density Polyethylene (HDPE) |
| Operating temperature (T-T) | -30 - 70 |
| Plug and Play | No |
| Product colour | Black |
| Storage temperature (T-T) | -30 - 70 |
| Tensil strenght | 1,5 kN |
| Wavelengths supported | 1260,1300,1310,1550 |
Supplier parameters
Product code
EX.15265
Brand
EXTRALINK
Supplier's product code
EX.15265
Product ID
U-3954745
