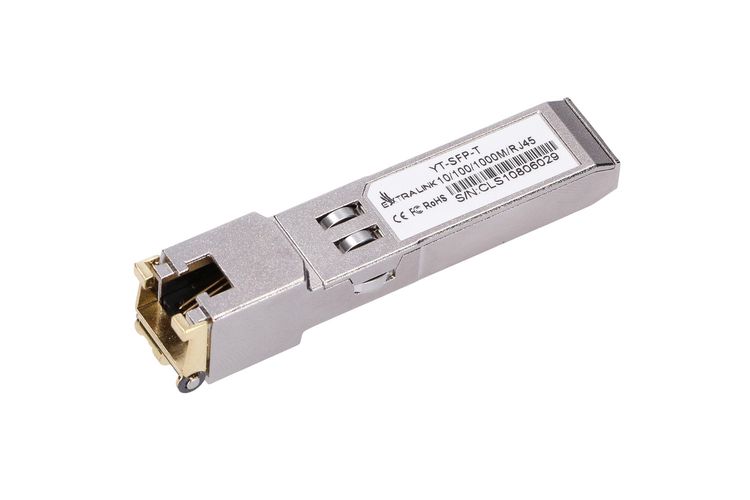

Cost-effective RJ45 1.25G SFP module dedicated for HP/Aruba
The Extralink SFP RJ45 with 1000 Mbps is a high-performance, cost-effective module that complies with Gigabit Ethernet and 1000-BASE-T standards as defined in IEEE 802. 3-2002 and IEEE 802.3ab. The SFP RJ45 insert supports data rates of 1000 Mbps over a maximum distance of up to 100 meters for Category 5 Ethernet cable. The SFP RJ45 module supports full duplex data links of 1000 Mbps with 5-level pulse amplitude modulation (PAM). All four pairs in the cable are used at a symbolic rate, which is 250 Mbps per pair. The Extralink SFP RJ45 provides standard SFP MSA-compliant serial ID information, which can be accessed via the A0h address via the 2-wire CMOS EEPROM serial protocol. The physical IC can also be accessed via the 2-wire serial bus at address A0h. The SFP RJ45 insert is compatible with most gigabit SFP ports found in network equipment. The SFP Ethernet module's all-metal housing makes the device characterized by low EMI. The presented insert is designed for HP/Aruba devices.
Special features
| Output connector | RJ45 |
| SFP module - port speed | 1,25 Gbps |
| Transmission distance | Less then 1km |
| Certification | FCC |
| Copper ethernet cabling technology | 1000BASE-T |
| Ethernet LAN | Yes |
| Interface type | SFP |
| Maximum data transfer rate | 1250 |
| Maximum transfer distance | 100 |
| SFP transceiver type | Copper |
| Sustainability certificates | CE, RoHS |
