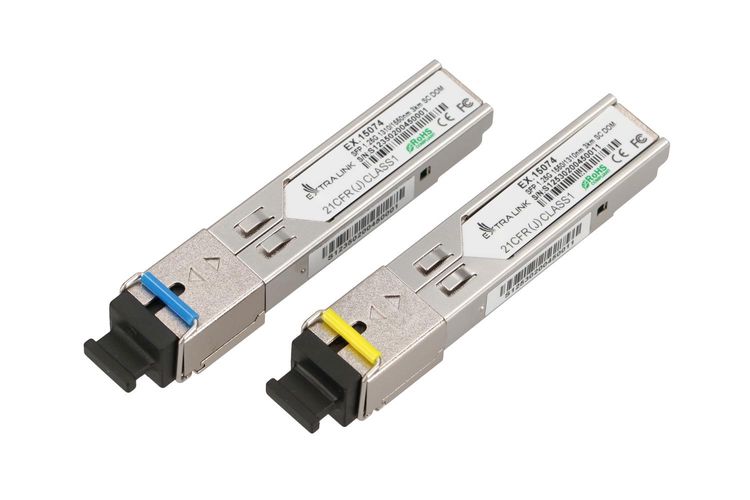

Single-mode module SFP 1.25G 1310/1550NM dedicated for HP/A screw
The Extralink SFP 1.25G 1310/1550NM fiber optic module is a single-mode SFP insert designed for data transmission at a speed up to 1.25 Gbps, which provides a transmission range of up to 3 km. It has an LC output connector. Presented Extralink SFP 1.25G 1310/1550NM module is dedicated for HP/Arub devices.
Powerful SFP module with WDM technology
The SFP single-mode module is compatible with SONET OC-24-LR-1 and the EU directive RoHS. Digital diagnostic monitoring allows for external and internal calibration. The device supports WDM signal multiplication technology. SFP 1.25G cartridge can be used in Gigabit Ethernet, fiber optic channels, switch-to-switch, switched backplane applications, router/server interfaces and other optical transmission systems.
Special features
Special features
- Dual data rate of 1.25 Gbps/1.063 Gbps
- Compatible with SFP MSA and SFF-8472 with SC/LC socket
- Digital diagnostic monitoring - internal or external calibration
- Compatibility with SONET OC-24-LR-1
- Compliance with RoHS Directive
- Single power supply +3.3 V
- Range up to 3 m
- WDM technology
- Wavelengths - 1310 nm and 1550 nm
- Compatible with HP/Arub
| Output connector | SC |
| SFP module - port speed | 1,25 Gbps |
| Transmission distance | 1-3km |
| Certification | FCC |
| Fiber optic connector | SC |
| Fiber type | SM (Single-Mode) |
| Interface type | SFP |
| Maximum data transfer rate | 1250 |
| Maximum operating temperature | 70 |
| Maximum transfer distance | 3000 |
| Number of products included | 2 |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Sustainability certificates | CE, RoHS |
| Type of SFP duplex | Wavy (WDM) |
| Wavelength | 1310/1550 nm |
| Wavelength | 1550 |
| Wavelength-division multiplexing (WDM) | Yes |
