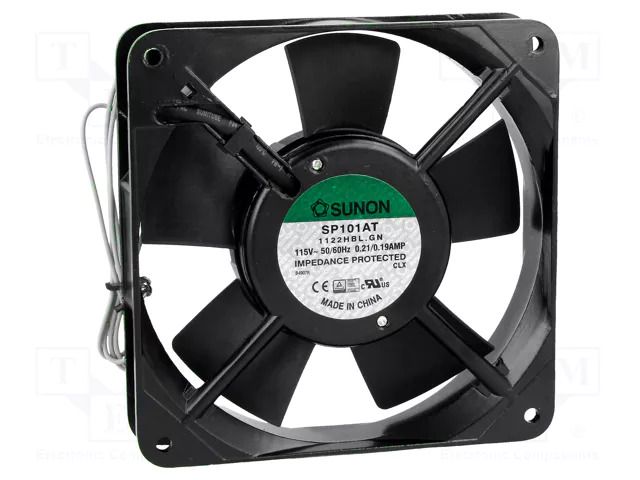

Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball SUNON
Product Code: SP101AT1122HBL
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball SUNON
Useful information
Specifications
Supplier product description
Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball
Useful information
Supplier parameters
Product code
SP101AT1122HBL
Current and power consumption tolerance
±15%
Current rating
0.18A
Enclosure material
aluminium
Fan dimensions
120x120x25mm
Fan efficiency
132m<sup>3</sup>/h (±7%)
Flammability rating
UL94V-0
Frequency
60Hz
Impeller material
thermoplastic
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
500MΩ
Noise level
46dBA
Operating temperature
-10...70°C
Power consumption
18W
Rotational rate/speed
2300rpm
Static pressure
4.06mm H<sub>2</sub>O
Supply voltage
115V AC
Type of fan
AC
Wire size
24AWG
Brand
SUNON
Supplier's product code
SP101AT1122HBL
Product ID
U-335369
